Product Name

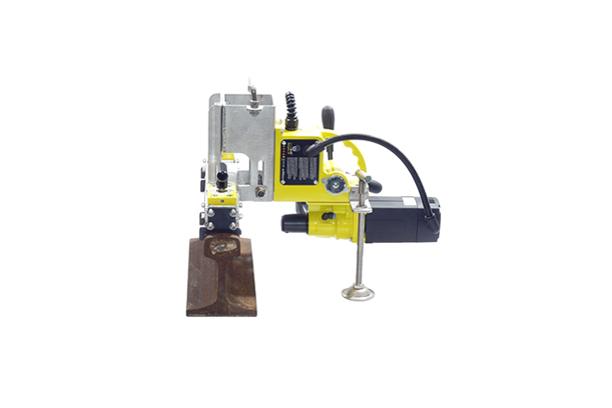

MagDrill for Rail Industry
Model Name
MDRL-625-RAIL
Size
-
Weight
-
Product Details
Description
ON/OFF control permanent magnet attached to rail strongly controling vibration and shaking and improving work speed and drill bit life
- Easy and fast setting
- Compact and lightweight design
- Powerful 8.2A Motor
- Adjusting drill height according to drilling position
- Drill bit only for rails supplied
- Cutting fluid supplying apparatus equipped
- Max. Ø30mm hole workable
- Possible to use on various sizes of rails
- Special carrierfor easy distance transportation (backpack)
MDRL-625-RAIL
| Size(Excluding Handles)(mm) | 460H x 330L x 370W |
| Weight(kg) | 15kg |
| Maximum magnetic force(kgf) | 500kgf |
| Input voltage | 220V~240V, 50~60Hz |
| Motor power | 8.2A |
| No-load rotation speed | 775rpm |
| 900W Load rotation speed | 400rpm |
| Drill stroke | 90mm |
| Fixed spindle type | 3/4" Weldon |
| Broach cutter(hole cutter) | Ø 12~30mm |
| Drill blade(Twist Drill) | Ø 1~13mm |
Comparison with existing rail drilling machine
How to work on rails with MagSwitch MagDrill and its working time
