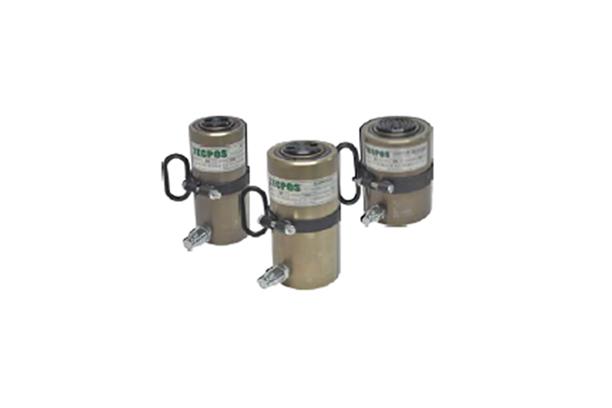

Aluminum Cylinder

Model Name

TAR-20

Series

Hydraulic Equipment

View AllView All Series

Data

Manufacturer information

Magswitch Technology

Shipyard tools manufacturer, lifting magnet, clamp, magnetic tools for shipbuilding

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

Magswitch Technology

Product Type

Machine

Brand

SKU

120031

Product Name

Aluminum Cylinder

Model Name

TAR-20, TAR-2010, TAR-2015, TAR-305, TAR-3010, TAR-3015, TAR-505, TAR-5010, TAR-5015, TAR-1005, TAR-10010, TAR-10015, TAR-1505, TAR-15010, TAR-15015

Size

Weight

Product Details

Description

Fast Working Speed! Improve Productivity!

- Light weight Aluminum bodyfor easy to handle
- Almost half the weight of steel cylinders
- Capacity : 20~150 Tons
- Stroke : 50~150mm
- Maximum Pressure : 700 Bar
- Hydraulic Coupler : 3/8” PT

Model#	Cylinder Capacity(cc)	Stroke(mm)	Cylinder Effective Area(㎠)	Oil Tank Capacity(cc)	Retracted Height(mm)	Extended Height(mm)	Cylinder O/D(mm)	Weight(kg)
TAR-205	20	50	28.3	145	150	200	89	3.2
TAR-2010		100		290	200	300		4.1
TAR-2015		150		435	250	400		4.8
TAR-305	30	50	44.2	220	168	218	1.8	5.1
TAR-3010		100		440	218	318		6.4
TAR-3015		150		660	268	418		7.5
TAR-505	50	50	70.9	355	182	232	134	8.7
TAR-5010		100		708	232	332		10.8
TAR-5015		150		1063	282	432		12.9
TAR-1005	100	50	132.8	660	193	243	189	16.5
TAR-10010		100		1320	243	343		19.5
TAR-10015		150		1980	293	443		23
TAR-1505	150	50	201.1	1005	208	258	238	27
TAR-15010		100		2010	258	358		33.4
TAR-15015		150		3016	308	458		39.8
