LUMENS

LUMENS

Exterior Series

Model

Series

Automotive LED


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

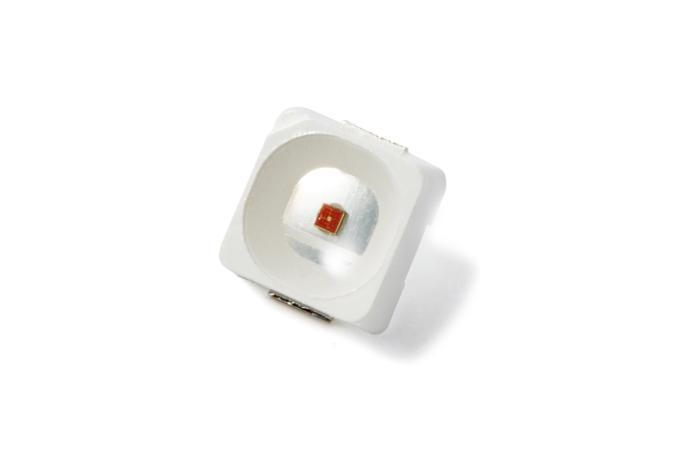

3535 Series



Features

- High Brightness yellow / red / white color surface mount LED

- AEC-Q101 qualified



Applications

- Yellow – Turn Signal Lamp

- Red – CHMSL / RCL

- White – Daytime Running Lamp



Specifications

Model Number Color Type Dimension [mm] Pd [W] If [mA] Iv [cd] Vf [V] CCT/Wd [nm] Viewing Angle
A5A1CECEMPY Yellow Flat 3.5×3.5×1.2 0.5 150 5.6-8.0cd 2.0-2.6 586-592 115
A5A1CECEMPR Red Flat 3.5×3.5×1.2 0.5 150 5.6-9.2cd 2.0-2.6 612-624 115
SA 3535 White Dome 3.5×3.5×1.4 1 350 100lm 3 6500K 120

Download

APPROVAL SHEET
