LUMENS

LUMENS

Package

Model

Series

BLU LED


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

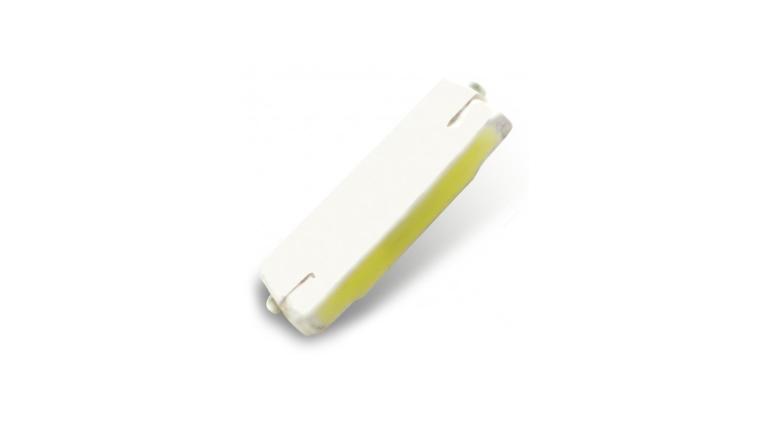

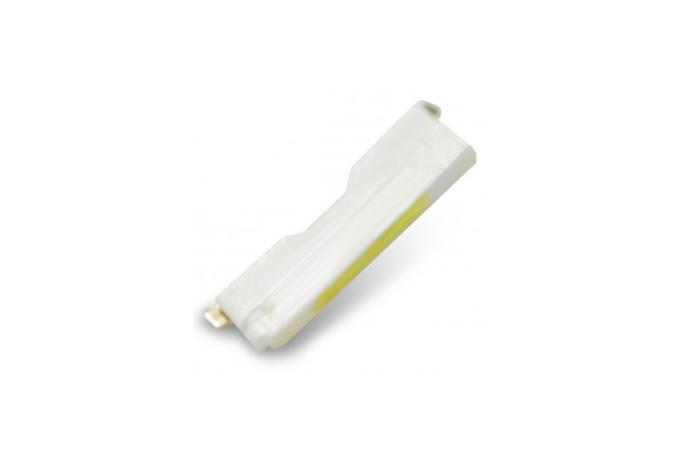

3810



FEATURES

- Size : 3.8 x 1.0 x 0.4 (0.6) mm

- Super slim solution

- High resolution, high brightness, and low power consumption



APPLICATION

- Note PC



Specifications

Model Size
[mm]
Forward
Current [mA]
Luminous
Intensity [cd]
Luminous
Flux [lm]
Forward
Voltage [VF]
Chip CIE(x/y)
0.6T 38 x 10 x 0.6 20 3 8.9 2.9 Leteral 1 chip 0.296 / 0.276
60 8 24 3.1 Flip 1 chip
0.4T 38 x 10 x 0.4 20 2.4 7.3 2.9 Leteral 1 chip
60 6.5 19 3.1 Flip 1 chip
