LUMENS

LUMENS

AC Direct LED

Model

Series

AC Direct LED


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

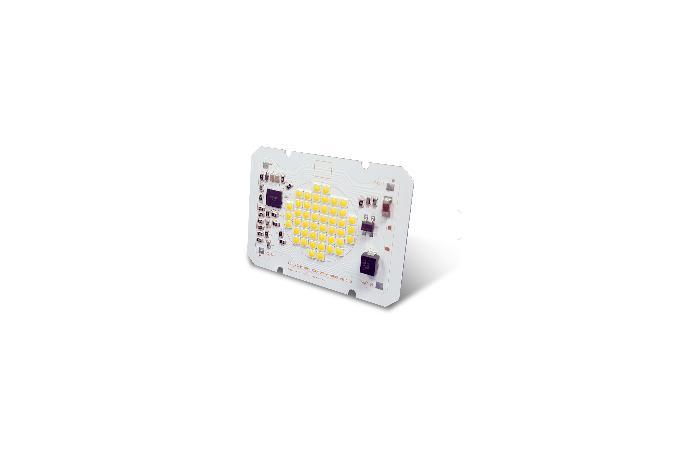

TileBlock® Series

The Most Powerful AC Outdoor Engine



Features

- High Power AC Solution (max.80W/IC)

- Diverse Dimming Solution (Triac, 0-10V)

- World’s 1st AC Dual Voltage Solutions (120V/277V)



Applications

Model Number Size
[mm]
Watt
[W]
Forward
Current [mA]
Forward
Voltage [V]
CRI
[Ra]
Color
Temp [K]
Luminous
Flux [lm]
TBL75X59/35W/830/120V/A  75X59 35 292 120 80 3,000 3,850
TBL75X59/50W/830/120V/A 75X59 50 417 120 80 3,000 5,500
TBL122X85/65W/830/120V/A 122X85 65 542 120 80 3,000 7,150
TBL122X85/80W/830/120V/A 122X85 80 667 120 80 3,000 8,800
