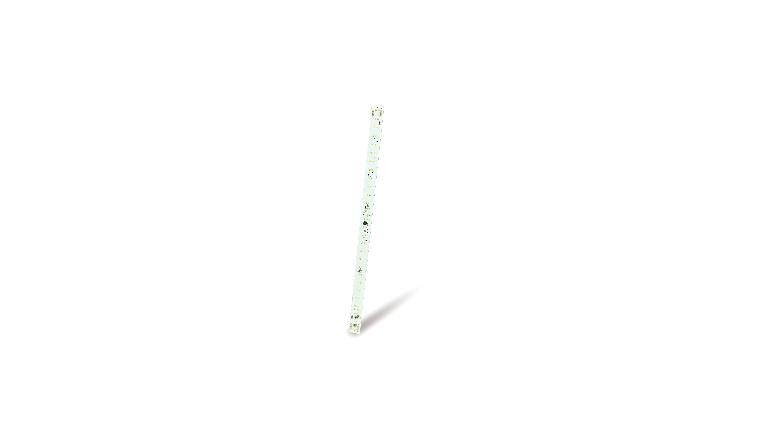

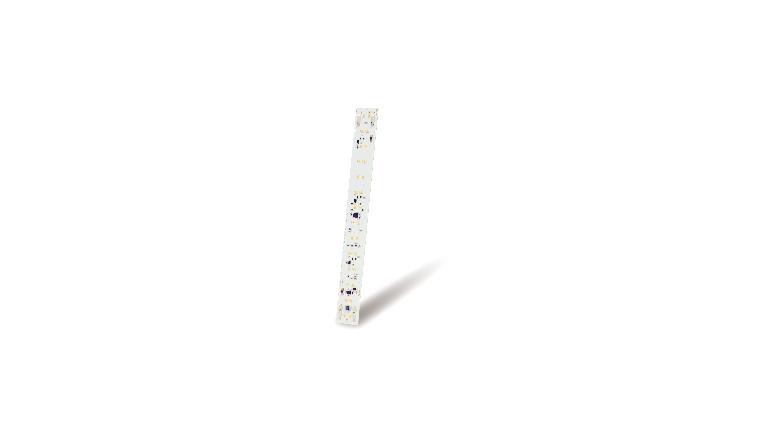

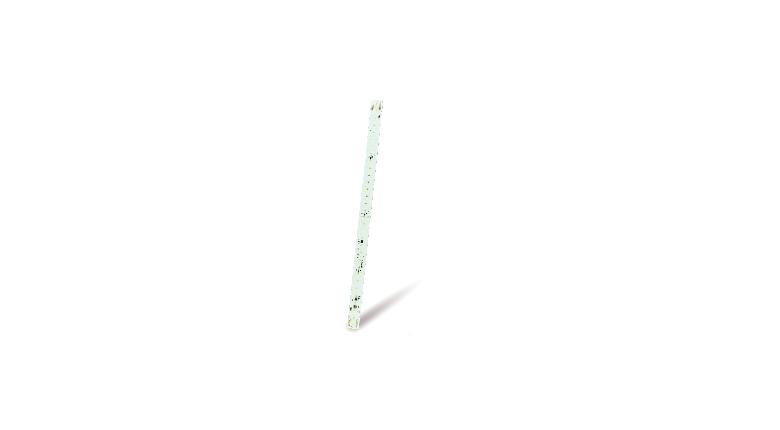

AC Direct LED
Model Name
Linearon®
Size
-
Weight
-
Product Details
Linearon®
Driverless, Limitless Connectivity
Features
- Perfect Uniform Dimming Control
- Full Interconnectivity in serial connection up to 270W
- Consistent White Light of 3 SDCM
- Designed according to Zhaga Book7
- With poke-in connector, easy for installation and replacement
Applications
Specifications
| Model Number | Size [mm] |
Watt [W] |
Forward Current [mA] |
Forward Voltage [V] |
CRI [Ra] |
Color Temp [K] |
Luminous Flux [lm] |
| LNM140X30/4.5W/830/120V/A | 140X30 | 4.5 | 38 | 120 | 80 | 3,000 | 450 |
| LNM280X30/4.5W/830/120V/A | 280X30 | 4.5 | 38 | 120 | 80 | 3,000 | 450 |
| LNM280X30/9W/830/120V/A | 280X30 | 9 | 75 | 120 | 80 | 3,000 | 900 |
| LNM560X30/9W/830/120V/A | 560X30 | 9 | 75 | 120 | 80 | 3,000 | 900 |
| LNM560X30/18W/830/120V/A | 560X30 | 18 | 150 | 120 | 80 | 3,000 | 1800 |
| Model Number | Size [mm] |
Watt [W] |
Forward Current [mA] |
Forward Voltage [V] |
CRI [Ra] |
Color Temp [K] |
Luminous Flux [lm] |
| LNM140X30/4.5W/830/230V/A | 140X30 | 4.5 | 20 | 230 | 80 | 3,000 | 450 |
| LNM280X30/4.5W/830/230V/A | 280X30 | 4.5 | 20 | 230 | 80 | 3,000 | 450 |
| LNM280X30/9W/830/230V/A | 280X30 | 9 | 39 | 230 | 80 | 3,000 | 900 |
| LNM560X30/9W/830/230V/A | 560X30 | 9 | 39 | 230 | 80 | 3,000 | 900 |
| LNM560X30/18W/830/230V/A | 560X30 | 18 | 78 | 230 | 80 | 3,000 | 1800 |
