This product is manufactured by
LUMENS
Manufacturer information
LUMENS
LED light products, Two way radio, Satellite communication, Base station monitoring device solution business
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
LUMENS
Product Type
Machine
Brand
-
SKU
45350
Product Name
Lighting LED
Model Name
2835 Series
Size
-
Weight
-
Product Details

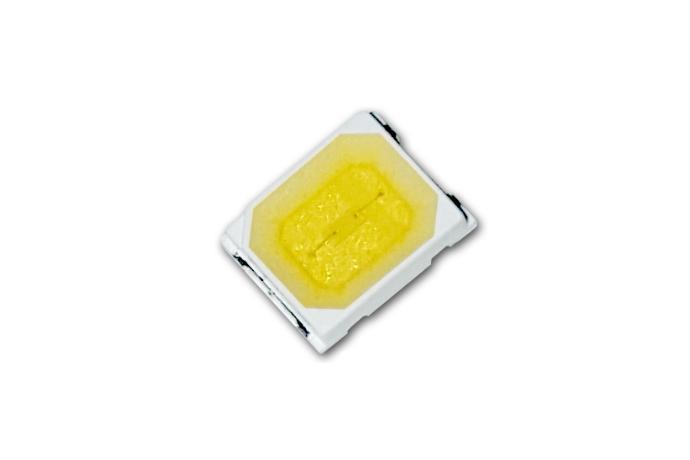

2835
High Efficacy, Wide HV Portfolio
Specifications
| Model Number | CRI [Ra] |
Color Temp [K] |
Watts [W] |
Luminous Flux [lm] |
Luminous Efficacy [lm/W] |
Forward Voltage [VF] |
Forward Current [mA] |
Max forward Current [mA] |
| LM2835S1W830A | 80 | 3,000 | 0.2 | 25 | 147 | 2.9 | 60 | 90 |
| LM2835S1W850A | 80 | 5,000 | 0.2 | 27 | 160 | 2.9 | 60 | 90 |
| LM2835S1W830B | 80 | 3,000 | 0.2 | 27 | 160 | 2.9 | 60 | 90 |
| LM2835S1W850B | 80 | 5,000 | 0.2 | 29 | 171 | 2.9 | 60 | 90 |
| LM2835S2W830A | 80 | 3,000 | 0.5 | 54 | 115 | 3.1 | 150 | 180 |
| LM2835S2W850A | 80 | 5,000 | 0.5 | 58 | 123 | 3.1 | 150 | 180 |
| LM2835S2W830B | 80 | 3,000 | 0.5 | 58 | 123 | 3.1 | 150 | 180 |
| LM2835S2W850B | 80 | 5,000 | 0.5 | 62 | 132 | 3.1 | 150 | 180 |
| LM2835S4W830E01 | 80 | 3,000 | 0.9 | 108 | 120 | 9.0 | 100 | 120 |
| LM2835S4W850E01 | 80 | 5,000 | 0.9 | 115 | 128 | 9.0 | 100 | 120 |
| LM2835S5W830E01 | 80 | 3,000 | 0.5 | 65 | 117 | 18.5 | 30 | 60 |
| LM2835S5W850E01 | 80 | 5,000 | 0.5 | 70 | 126 | 18.5 | 30 | 60 |
