Description

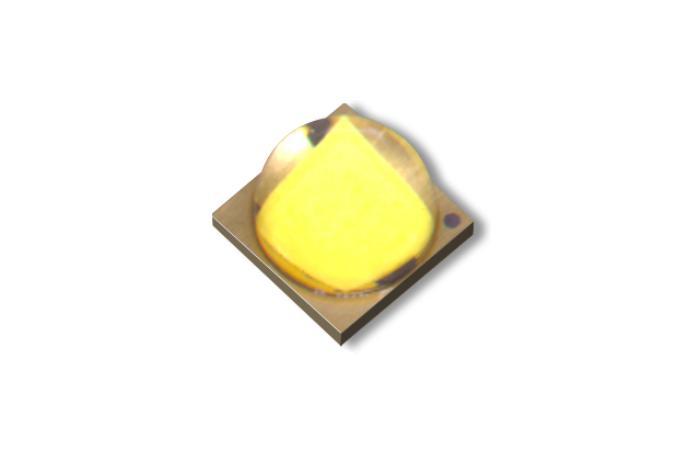

3535F

The Most Reliable Flip-Chip Ceramic Package



Applications

LUMENS  3535F Series



Specifications

Model Number CRI
[Ra]
Color
Temp [K]
Watts
[W]
Luminous
Flux [lm]
Luminous
Efficacy [lm/W]
Forward
Voltage [VF]
Forward
Current [mA]
Max forward
Current [mA]
LH3535F1W830E00 80 3,000 1.0 146 144 2.89 350 1,500
LH3535F1W850E00 80 5,000 1.0 164 164 2.89 350 1,500

Download

Specification Datasheet
