Description

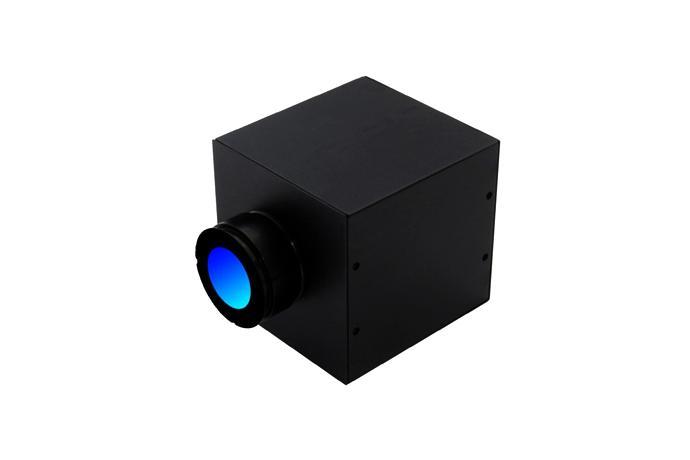

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.

Uncooled micro bolometer long wave infrared (LWIR) camera.

- Pixel Resolution 640 x 480

- MPEG4, H.264 Video streaming, Frame rate 60Hz

- HDMI Digital Output

- Exclusive use of DRONE




Imaging Performance
Detector TypeFocal Plane Array(FPA)
Uncooled microbolometer, Vox
Pixel Resolution640x480
Spectral Range8-14 μm
Average Transmission90%
F#1
FOV39°
Focal Length19mm
Measurement
NETD<70mK
Image Presentation
Digital Output16bit digital, HDMI
Video streamingMPEG4, H.264
Frame rate30 / 60Hz
Environmental
Operating Temperature-20°C ~ +55°C
Storage Temperature-25°C ~ +60°C
Physical Characteristics
Weight159g
Size(L x H x W)55 x 47 x 47(mm)
Included Components
Power Supply12VDC, 500mA
