LSL SYSTEMS

LSL SYSTEMS

-

Model

Series

Infrared Thermal Cameras For Temperature


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

sed on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera. Thermography

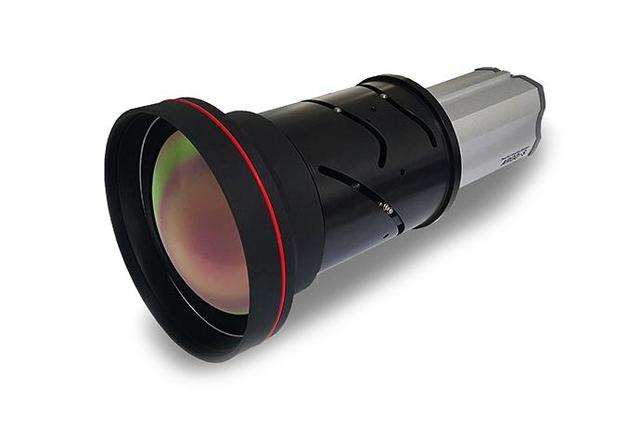

Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.

19mm Lens, Continuous Digital zoom

IP network camera (ONVIF compliance)

With a built-in Web server

PoE(Power over Ethernet)
- Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)

8 kinds of color mode, 3 kinds of image filter in accordance with the environment




Imaging Performance
Detector TypeFocal Plane Array(FPA)
Uncooled microbolometer, Vox
Pixel Resolution320x240
Spectral Range8-14 um
Average Transmission90%
F#1
FOV39°
Focal Length19mm
Measurement
NETD<70mK
Image Presentation
Digital Output16bit digital
Video streaming30 / 60 Hz
Environmental
Operating Temperature-20°C ~ +80°C
Storage Temperature-30°C ~ +85°C
Physical Characteristics
Weight1Kg
Size(L x H x W)185 x 86 x 100(mm)
Included Components
Power Supply12VDC, 1A or PoE(Power over Ethernet)
ComplianceONVIF
Recommended Range(Focal Length: 19mm)
 Human(1.7m)CAR(2.3m)
Detection175m236m
Recognition77m104m
Identification38m52m



LSL SYSTEMS  ARGO3L25-ITT
