LSL SYSTEMS

LSL SYSTEMS

-

Model

Series

Infrared Thermal Cameras For Security


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

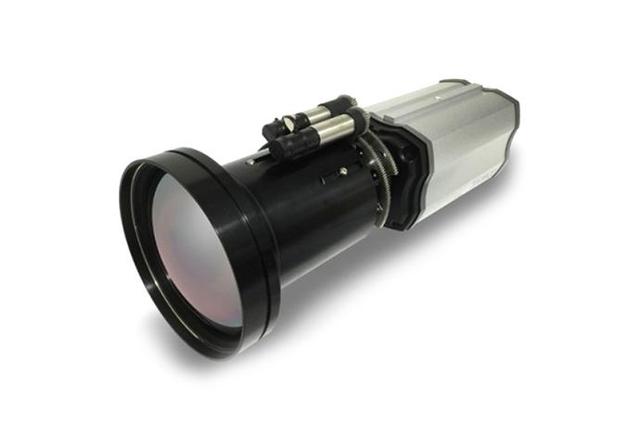

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.


<tab title="Features">

Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.

28~225mm Continuous optical zoom, Continuous Digital zoom

IP network camera (ONVIF compliance)

Auto Focus - High speed auto focu

Zoom, Pan & Tilt - By only OnVif command over Ethernet.
  ※ No need RS-485/422 cable

With a built-in Web server

PoE(Power over Ethernet) - Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)

8 kinds of color mode, 3 kinds of image filter in accordance with the environment




<tab title="Specifications">


Imaging Performance
Detector Type Focal Plane Array(FPA)
Uncooled microbolometer, Vox
Pixel Resolution 640x480
Spectral Range 8-12 μm
Average Transmission 81%
F# 1.5
FOV Narrow: 2.77°
Wide: 22.26°
Focal Length 28 ~ 225mm(continuous zoom)
Measurement
NETD <70mK
Image Presentation
Digital Output 16bit digital
Video streaming MPEG4, H.264
Frame rate 30Hz
Environmental
Operating Temperature -20°C ~ +55°C
Storage Temperature -25°C ~ +60°C
Physical Characteristics
Weight 5.3Kg
Size(L x H x W) 409 x 178 x 178 (mm)
Included Components
Power Supply PoE(Power over Ethernet)
Recommended Range(Focal Length: 225mm)
  Human(1.7m) CAR(2.3m)
Detection 5,114m 6,919m
Recognition 2,250m 3,044m
Identification 1,125m 1,522m
