LSL SYSTEMS

LSL SYSTEMS

-

Model

Series

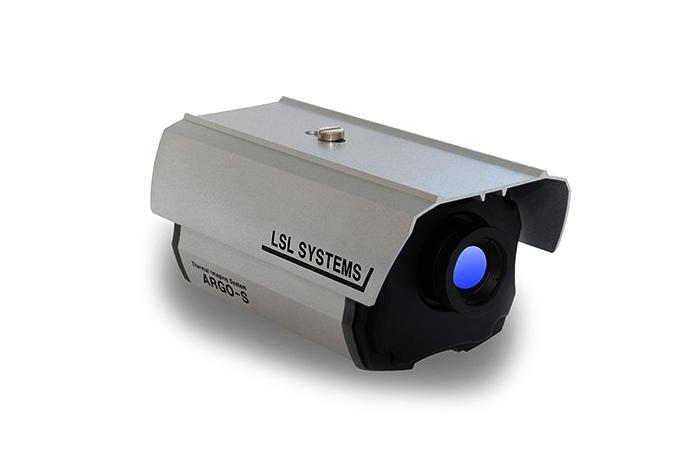

Infrared Thermal Cameras For Security


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.


Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.

19mm Lens, Continuous Digital zoom

IP network camera (ONVIF compliance)

With a built-in Web server

PoE(Power over Ethernet)
- Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)

8 kinds of color mode, 3 kinds of image filter in accordance with the environment




lslsystems

Imaging Performance
Detector TypeFocal Plane Array(FPA)
Uncooled microbolometer,Vox
Pixel Resolution640x480
Spectral Range8-14 ?m
Average Transmission90%
F#1
FOV39°
Focal Length19mm
Measurement
NETD<70mK
Image Presentation
Digital Output16bit digital
Video streamingMPEG4, H.264
Frame rate30Hz
Environmental
Operating Temperature-20°C ~ +55°C
Storage Temperature?-25°C ~ +60°C
Physical Characteristics
Weight1Kg
Size(L x H x W)185 x 86 x 100(mm)
Included Components
Power Supply12V DC, 3.4A or PoE(Power over Ethernet)
ComplianceONVIF
Recommended Range(Focal Length: 19mm)
 Human(1.7m)CAR(2.3m)
Detection349m472m
Recognition154m208m
Identification77m104m
