LSL SYSTEMS

LSL SYSTEMS

-

Model

Series

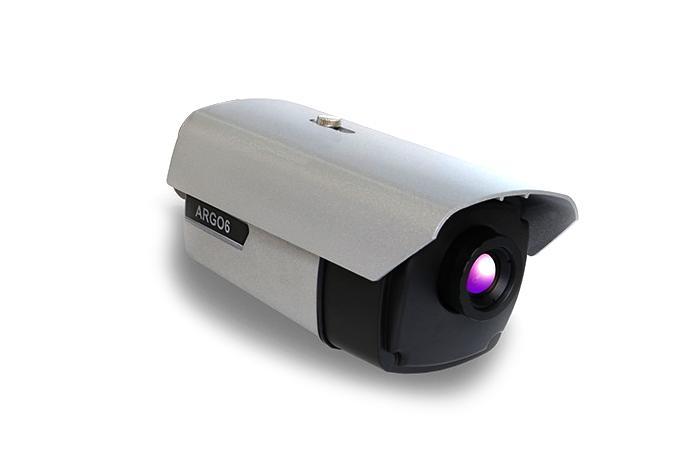

Infrared Thermal Cameras For Security


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.


Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.

19mm Lens, Continuous Digital zoom

IP network camera (ONVIF compliance)

With a built-in Web server

PoE(Power over Ethernet)
- Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)

8 kinds of color mode, 3 kinds of image filter in accordance with the environment





Imaging Performance
Detector TypeFocal Plane Array(FPA)
Uncooled microbolometer,Vox
Pixel Resolution640x480
Spectral Range8-14 μm
Average Transmission90%
F#1
FOV39°
Focal Length19mm
Digital Zoom<70mK
Measurement
NETD16bit digital
Image Presentation
Digital Output16bit digital
Video streamingMPEG4, H.264
Frame rate30Hz
Environmental
Operating Temperature-25°C ~ +60°C
Storage Temperature-30°C ~ +65°C
EncapsulationIP66
Physical Characteristics
Weight1.6Kg
Size(L x H x W)285 x 105 x 105(mm)
Included Components
Power Supply12V DC, 3.4A or PoE(Power over Ethernet)?
ComplianceONVIF
Recommended Range(Focal Length: 19mm)
 Human(1.7m)CAR(2.3m)
Detection349m472m
Recognition154m208m
Identification77m104m



LSL SYSTEMS  ARGO6L17-OTLSL SYSTEMS  ARGO6L17-OT 1
