This product is manufactured by
LSL SYSTEMS
Manufacturer information
LSL SYSTEMS
Infrared thermal image system manufacturer
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
LSL SYSTEMS
Product Type
Machine
Brand
-
SKU
48144
Product Name
-
Model Name
ARGO6C15-OP420
Size
-
Weight
-
Product Details

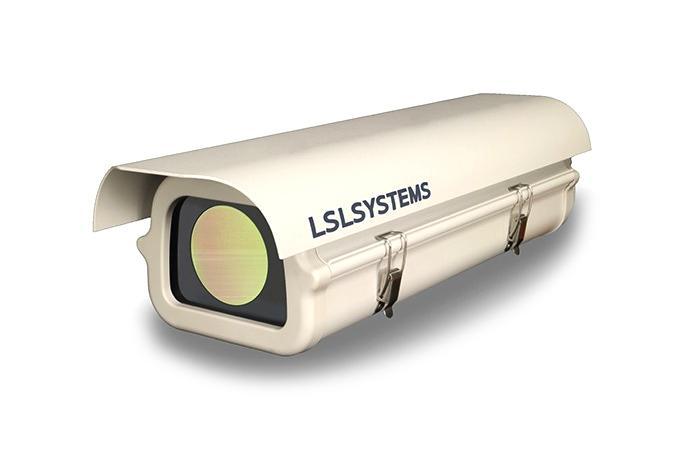

Based on DSP core technology and TCP/IP interface, Uncooled microbolometer long wave infrared (LWIR) camera.
Based on DSP core technology and TCP/IP interface, Uncooled micro bolometer long wave infrared (LWIR) camera.
75mm Lens, Continuous Digital zoom
IP network camera (ONVIF compliance)
Auto Focus - High speed auto focus
Zoom, Pan & Tilt - By only OnVif command over Ethernet.
※ No need RS-485/422 cable
With a built-in Web server
PoE(Power over Ethernet) - Standard PoE+(IEEE 802.3at) and PoE(IEEE 802.3af-2003)
8 kinds of color mode, 3 kinds of image filter in accordance with the environment
| Imaging Performance | |||
| Detector Type | Focal Plane Array(FPA) Uncooled microbolometer,Vox | ||
|---|---|---|---|
| Pixel Resolution | 640x480 | ||
| Spectral Range | 8-14 μm | ||
| Average Transmission | 90% | ||
| F# | 1 | ||
| FOV | 10.3° | ||
| Focal Length | 75mm | ||
| Measurement | |||
| NETD | <70mK | ||
| Image Presentation | |||
| Digital Output | 16bit digital | ||
| Video streaming | MPEG4, H.264 | ||
| Frame rate | 30Hz | ||
| Environmental | |||
| Operating Temperature | -32°C ~ +70°C | ||
| Storage Temperature | -45°C ~ +75°C | ||
| Encapsulation | IP66 | ||
| Physical Characteristics | |||
| Weight | 4.5Kg | ||
| Size(L x H x W) | 562 x 149 x 178 (mm) | ||
| Included Components | |||
| Power Supply | PoE(Power over Ethernet)? | ||
| Compliance | ONVIF | ||
| Recommended Range(Focal Length: 75mm) | |||
| Human(1.7m) | CAR(2.3m) | ||
| Detection | 1,372m | 1,856m | |
| Recognition | 604m | 817m | |
| Identification | 302m | 408m | |
75mm Lens - Distance: 50M
75mm Lens - Distance: 400M
Infrared thermal image system manufacturer
LSL SYSTEMS is a professional infrared camera manufacturer based in South Korea that develops, manufactures and sells uncooled infrared thermal cameras.
LSL SYSTEMS was established in June 2009 after five years of research about uncooled infrared thermal cameras at Korean Universities.
LSL SYSTEMS has had a pioneer role in developing infrared camera systems in Korea relying only on incomes over the past few years, with outstanding results. We are committed to continue developing infrared camera technology to compete with and outperform international companies.
LSL SYSTEMS will continue to grow and develop under its slogan of Cost, Customer and Care, providing excellent products and the best service to customers.
