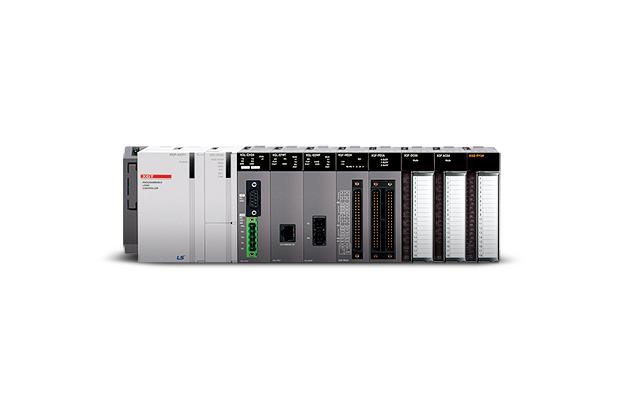

PLC XGK, XGI CPU (XGT Series)

Model

Series

PLC (Smart Automation Solution)


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

XGK CPU (LS Standard Ladder Programming)

Premium CPU for high-speed and large scale application

XGK-CPUUN

ㆍProgram capacity: 256K steps

ㆍI/O points: 6,144

ㆍI/O device point: 65,536 (Remote I/O)

ㆍProcessing speed: 8.5ns/step

XGK-CPUHN

ㆍProgram capacity: 128K steps

ㆍI/O points: 6,144

ㆍI/O device point: 65,536 (Remote I/O)

ㆍProcessing speed: 8.5ns/step

XGK-CPUSN

ㆍProgram capacity: 64K steps

ㆍI/O points: 3,072

ㆍI/O device point: 65,536 (Remote I/O)

ㆍProcessing speed: 8.5ns/step

XGK-CPUU (Ultra capacity)

ㆍProgram capacity: 128K steps

ㆍI/O points: 6,144

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 28ns/step

XGK-CPUH (High performance)

ㆍProgram capacity: 64K steps

ㆍI/O points: 6,144

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 28ns/step

XGK-CPUA (Advanced)

ㆍProgram capacity: 32K steps

ㆍI/O points: 3,072

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 28ns/step



General sequence controller PLC CPU

XGK-CPUS (Standard)

ㆍProgram capacity: 32K steps

ㆍI/O points: 3,072

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 84ns/step

XGK-CPUE (Economic)

ㆍProgram capacity: 16K step

ㆍI/O point: 1,536

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 84ns/step



XGI CPU (IEC Standard Programming)

Premium CPU for high-speed and large scale application

XGK-CPUSN

ㆍProgram capacity: 64K steps

ㆍI/O points: 3,072

ㆍI/O device point: 65,536 (Remote I/O)

ㆍProcessing speed: 8.5ns/step

XGI-CPUU

ㆍProgram capacity: 1MBytes

ㆍI/O points: 6,144

ㆍI/O device point: 131,072 (Remote I/O)

ㆍProcessing speed: 28ns/step

XGI-CPUH

ㆍProgram capacity: 512KBytes

ㆍI/O points: 6,144

ㆍI/O device point: 131,072 (Remote I/O)

ㆍProcessing speed: 28ns/step





General sequence controller PLC CPU

XGI-CPUS (IEC Standard)

ㆍProgram capacity: 128KBytes

ㆍI/O points: 3,072

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 28ns/step

XGI-CPUE (IEC Standard)

ㆍProgram capacity: 64KBytes

ㆍI/O points: 1,536

ㆍI/O device point: 32,768 (Remote I/O)

ㆍProcessing speed: 84ns/step



Specifications

XGK CPU

Item Description Remarks
XGK-CPUUN XGK-CPUHN XGK-CPUSN
Operation method Cyclic execution of stored program, Time-driven interrupt, Process-driven interrupt
I/O control method Batch processing by scan synchronization (Refresh), Direct input/output by instruction
Program language Ladder diagram, Instruction list, SFC(Sequential Function Chart), ST(Structured Text)
Number of instructions Basic 40
Application 700
Processing speed LD 0.0085㎲/step
MOVE 0.255㎲/step
Real number operation ± : 182.2ns(S), 327.3ns(D) S: Single real number D: Double real number
X : 336ns(S), 427ns(D)
÷ : 345ns(S), 808ns(D)
Program capacity 256Kstep (2,048KB) 128Kstep (1,024KB) 64Kstep (512KB)
I/O points(availableto install) 6,144 6,144 3,072
Data area P P00000 ~ P4095F(65,536 points )
M M00000 ~ M4095F(65,536 points )
K K00000 ~ K4095F(65,536 points )
L L0000 ~ L11263F(180,224 points )
F F0000 ~ F4095F(65,536 points )
T 100ms : T0000 - T2999 Timer (Adjustable)
10ms : T3000 - T5999
1ms : T6000 - T7999
0.1ms : T8000 - T8191
C C0000 ~ C4095
S S00.00 ~ S255.99
D D0000 ~ D524287 D0000 ~ D262143
U U0.0~U7F.31 U0.0~U3F.31 Special module data refresh area
Z 256 points
N N00000 ~ N21503
R 16 block 8 block 2 block 32Kwordper1block(R0~R32767)
Flash area 2M byte, 32 blocks Controllable by R device
Program type Total program 256
Initialization 1 (_INT)
Time-driven 32
Internal 32
Operation mode RUN, STOP, DEBUG
Self-diagnosis Execution, Delay, Memory error, I/O error, Battery error, Power error Modbus slave
Programming port RS-232C (1Ch), USB (1Ch)
Data retention at power failure Set “retain” at data declaration
Max. expansion stage 7 3 Total length 15m
Current consumption (mA) 960
Weight (Kg) 0.12
