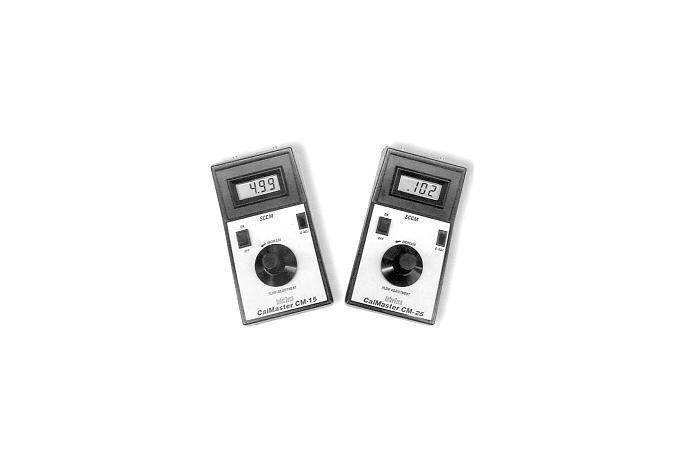

CalMaster
World Leader in Leak Detection Technology


ISO 9001 Registered

A user friendly transfer standard for the fast and accurate calibration of production leak detectors. NIST traceable. Can be used to calibrate pressure, flow, or vacuum type leak detectors.


Two flow ranges are available:
 CM-15 : 0.25 ~ 19.99 sccm
 CM-25 : 0.025 ~ 1.999 sccm


Products Informaiton


Technology
ㆍThe LNTech CM-15 & CM-25 CalMasters are used to induce airflow leaks in calibrating leak detectors.
ㆍThe instruments use a proprietary mass flow sensor to measure the flow of air from the leak detector’s calibration port or leak test fixture.

ㆍIn calibration mode, the calibration port is connected to the inlet (PRESSURE) port of the CalMaster.
ㆍAir flows through a precision needle valve, across the mass flow sensor and out to atmosphere.
ㆍThis flow is measured and displayed on the DRO (digital read out).
ㆍThe leak rate is adjusted by varying the setting of the needle valve.
ㆍCalibration of vacuum type leak detectors is similar, except the calibration port is connected to the CalMaster outlet (VACUUM) port, and the inlet (PRESSURE) port is left open to atmosphere.
ㆍCalibration of downstream (bell jar) leak detectors - a supply pressure must be connected to the inlet(PRESSURE) port, while the outlet (VACUUM) port is connected to the calibration port on the leak fixture. This will simulate a leak flow in to the bell jar.


Display
ㆍ3-1/2 digit LCD display
ㆍLow Battery Indicator (display on meter)


Controls
ㆍFlow Adjustment
ㆍZero adjust & power on-off

Dry air used for Calibration - alternative gases are available (ie. Nitrogen)
CM-15 (0.25 - 19.99 sccm)
ㆍFlows under 0.50 sccm, up to 10 psig maximum operating pressure
ㆍFlows between 0.50 - 2.00 sccm, up to 50 psig maximum operating pressure
ㆍFlows between 2.00 - 19.99 sccm, up to 90 psig maximum operating pressure
CM-25 (0.025 - 1.999 sccm)
ㆍFlows under 0.500 sccm, up to 10 psig maximum operating pressure
ㆍFlows between 0.500 - 1.999 sccm, up to 50 psig maximum operating pressure
Calibration Accuracy : Traceable to a 0.2% primary standard
Repeatability: 0.05% of Full Scale
Ambient Temperature : 40° F (4° C) to 105° F (40° C)
Proof Pressure Rating: PRES connection: 250 PSIG (17 bar), VAC connection: 5 psig (0.35 bar)


Accessories
ㆍFlow Adjustment
ㆍZero adjust & power on-off

Dry air used for Calibration - alternative gases are available (ie. Nitrogen)
 Air Supply : Instrument grade air , filtered to 5 micron
Battery Power : Standard 9V Alkaline (50 hours of life at continuous operation)
Pressure & Vacuum Connections: Two 1/8” stainless steel tube fittings (Swagelok P/N SS-200-61)
Dimensions: 7.5” L x 4.3” W x 3.125” H (190 x 109 x 79 mm)
Weight: 1.8 LBS (820g)



User Tube Connections and Sizes
 Air Supply & Vacuum Source Port: 1/8 inch (standard) / 4 mm (metric) tube
