Libertron

Libertron

-

Model

Series

Embedded Platforms


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

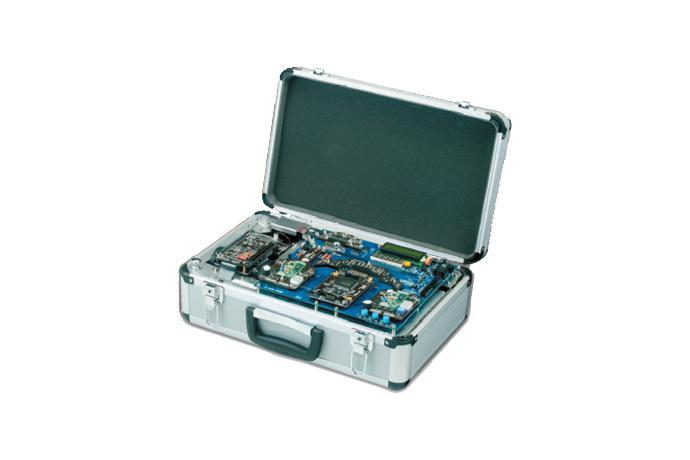

Libertron  iRoV-Lab 3000

Division Item Specification Details
H/W FAU module
(FPGA+AVR)
Target FPGA XC3S400-4FT256C
Configuration Memory XCF04-SVO20C
AVR ATmega128LMLF 3.6864MHz
PSRAM CYK001M16SCCA(16Mb) * 2 2Bank
USB Controller FT245BM
USB Port FT245BM Max. 8Mbps
Oscillator SCO-103 (50Mhz)
Camera module CMOS Camera PO3130 0.3million pixel
RF module wireless sender/receiver, each 3key (311 Mhz-AM modulation system)
Sensor module infrared sensor
  - light emitting part : peak wavelength 940nm
  - light receiving part : peak wavelength 800nm
  - 1EA for Light racer, 1EA for micro mouse

Motor module Stepping Motor 2EA
Motor Driver 2EA
chargeable curcuit installed

Power supply Chargeable battery
  - nikel-metal hydrogen 14.4V/600mAh
  - powe adaptor 19V/3A
  - assistant battery supply
Max. 4-pack charging
(option)
Display LCD(16 Char X 2 Row), 7-Segment(6 Digit)
Element Discrete LED(8 Bit)
Switch DIP Switch 1EA, Push Switch 3EA
S/W FPGA Design Tool Xilinx ISE Foundation (Full option honest commodity )
Modelsim Simulator(XE Starter)
donation to university's purchaser
Compiler AVR Edit 3.6
Board Application S/W displaying program for video camera Window XP supportable
