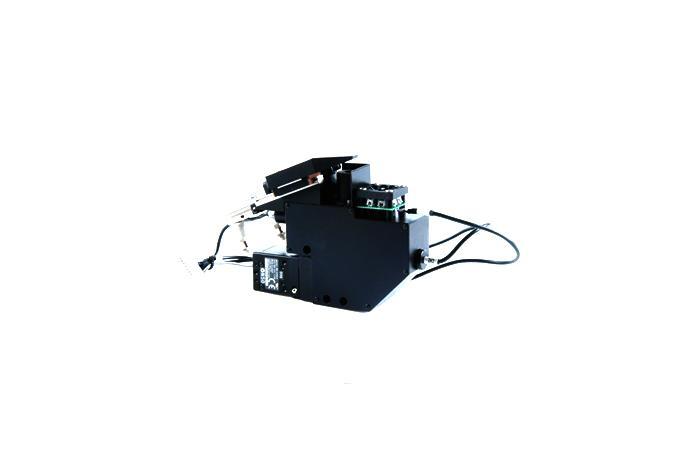

product Image
SPECIAL Series
Model Name
SPECIAL Series
Series
Lens Part
View All
Data
-
Manufacturer information
provider logo
LEESOS

Optical system solution company, Semi conductor, LCD, LED, Alignment optic and more

Problem with product info?
Update request
Manufacturer
LEESOS
Product Type
Machine
Brand
-
SKU
47132
Product Name
-
Model Name
SPECIAL Series
Size
-
Weight
-
Product Details

CHUCK SPEC

MODEL Megnification Illumination W.D(100um) N.A Resolution D.O.F (um)
Calculation Monitor
Chuck Camera 0.9X Coaxial / Ring 19.10 mm 0.04 7.6 15.62 ± 0.55
14X Coaxial 10.46 mm 0.33 0.93 1.55 ± 4.3



BRIDGE SPEC

MODEL Megnification Illumination W.D(100um) N.A Resolution D.O.F (um)
Calculation Monitor
Bridge Camera 0.6X Coaxial / Ring 19 mm 0.025 12.5 27.8 ± 1300
8.5X Coaxial / Ring 18.8 mm 0.2 1.53 1.95 ± 11.7
15.25X Coaxial / Ring 19 mm 0.2 1.53 1.75 ± 6.6
