LEESOS

LEESOS

-

Model

Series

Lens Part


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

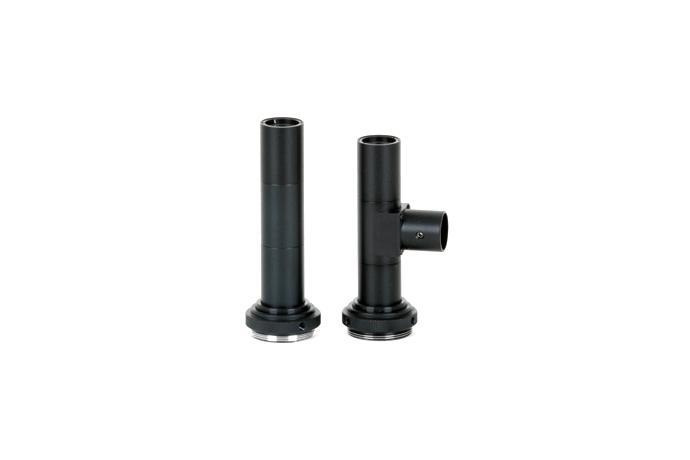

TLW 65 SPEC

MODEL
(ON/COAXIAL)
Optical
magnification
WD(mm) Depth
of field
Resolution NA Paraxial
Working
F/#
F.O.V. MOUNT
TLW65D
- 0.8X
0.8X 65mm ±0.834
mm
11.2um 0.03 13.3 H11.0 x V8.25(2/3"),
H8.0 x V6.0(1/2")
C-mount
TLW65D
- 1.0X
1.0X 65mm ±0.666
mm
11.2um 0.03 16.7 H8.8 x V6.6(2/3"),
H6.4 x V4.8(1/2")
C-mount
TLW65D
- 1.2X
1.2X 65mm ±0.556
mm
10.7um 0.03 19 H5.33 x V4.0(1/2"),
H4.0 x V 3.0(1/3")
C-mount
TLW65D
- 1.5X
1.5X 65mm ±0.337
mm
7.2um 0.047 15.7 H4.26 x V3.2(1/2"),
H3.2 x V 2.4(1/3")
C-mount
TLW65D
- 2.0X
2.0X 65mm ±0.142
mm
4.8um 0.07 14.2 H3.2 x V2.4(1/2"),
H2.4 x V1.8(1/3")
C-mount
TLW65D
- 2.5X
2.5X 65mm ±0.114
mm
4.8um 0.07 17.6 H2.56 x V1.92(1/2"),
H1.92 x V1.44(1/3")
C-mount
TLW65D
- 3.0X
3.0X 65mm ±0.088
mm
4.47um 0.075 19.9 H2.9 x V2.2(2/3"),
H2.1 x V1.6(1/2")
C-mount
TLW65D
- 4.0X
4.0X 65mm ±0.062
mm
4.2um 0.08 24.9 H2.2 x V1.6(2/3"),
H1.6 x V1.2(1/2")
C-mount

MODEL
(ON/COAXIAL)
Optical
magnification
WD(mm) Depth
of field
Resolution NA Paraxial
Working
F/#
F.O.V. MOUNT
TLW65
- 0.8X
0.8X 65mm ±0.834
mm
11.2um 0.03 13.3 H11.0 x V8.25(2/3"),
H8.0 x V6.0(1/2")
C-mount
TLW65
- 1.0X
1.0X 65mm ±0.666
mm
11.2um 0.03 16.7 H8.8 x V6.6(2/3"),
H6.4 x V4.8(1/2")
C-mount
TLW65
- 1.2X
1.2X 65mm ±0.556
mm
10.7um 0.03 19 H5.33 x V4.0(1/2"),
H4.0 x V 3.0(1/3")
C-mount
TLW65
- 1.5X
1.5X 65mm ±0.337
mm
7.2um 0.047 15.7 H4.26 x V3.2(1/2"),
H3.2 x V 2.4(1/3")
C-mount
TLW65
- 2.0X
2.0X 65mm ±0.142
mm
4.8um 0.07 14.2 H3.2 x V2.4(1/2"),
H2.4 x V1.8(1/3")
C-mount
TLW65
- 2.5X
2.5X 65mm ±0.114
mm
4.8um 0.07 17.6 H2.56 x V1.92(1/2"),
H1.92 x V1.44(1/3")
C-mount
TLW65
- 3.0X
3.0X 65mm ±0.088
mm
4.47um 0.075 19.9 H2.9 x V2.2(2/3"),
H2.1 x V1.6(1/2")
C-mount
TLW65
- 4.0X
4.0X 65mm ±0.062
mm
4.2um 0.08 24.9 H2.2 x V1.6(2/3"),
H1.6 x V1.2(1/2")
C-mount
