WIRELESS COMMUNICATIONS

 Bluetooth Wireless Technology

 Maximum number of devices per base station: 7

 Profiles

 HID (Human Interface Device); SPP (Serial Port Profile)

 Protocol

 Bluetooth 3.0 Certified Class 1

 Radio Frequency

 2.40 to 2.48 GHz

 Radio Range (Open Air)

 Class 1: up to 100 m / 328 ft;

 Range distances are measured using the base station.
 Range with connection to other Bluetooth peripherals may show different results.

 Security

 Data Encryption; Scanner Authentication

DECODING CAPABILITY

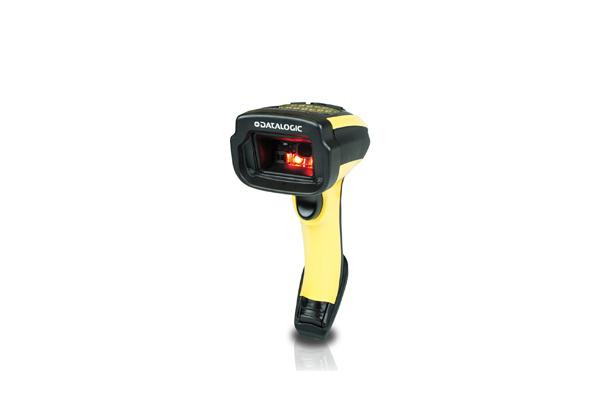

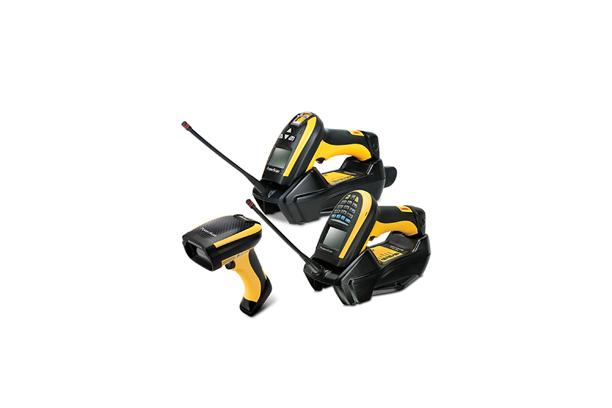

 PBT9100

 GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN

 Co upons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP,

 Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5,

 Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5,

 Codablock

ELECTRICAL

 Battery

 Lithium-Ion, 2150 mAh

 Charge Time

 External Power: 4 Hours; Host Power: 10 hours

 Reads per Charge

 50,000+ (continuous reading)

 Cradle Indicator LEDs B

 Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)

 Current

 External Power: Max. 10 W (charging); POT: Max. 500 mA (charging)

 Input Voltage

 10 - 30 VDC, POT: 5 VDC +/- 10%

ENVIRONMENTAL

Ambient Light

Immune to light exposure in offices/facilities and direct exposure to sunlight.

Drop Resistance

Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface.

ESD Protection (Air Discharge)

20 kV

Humidity (Non-Condensing)

0 - 95%

Particulate and Water Sealing

IP65

Temperature

Operating: -20 to 50 °C / -4 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F

INTERFACES

Interfaces

Keyboard Wedge RS-232;
USB: OEM USB; USB COM; USB HID Keyboard;

Optional Ethernet (Standard, Industrial)

PHYSICAL CHARACTERISTICS

Colors Available

Yellow/Black

Dimensions

Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in
PBT9100: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in

Weight

Cradle: 380.0 g / 13.4 oz
PBT9100-XX: 405.0 g / 14.2 oz

READING PERFORMANCE

Light Source

Green LED

인쇄선명도 (최소)

15%

Reading Angle

Pitch: +/- 75; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°

Reading Indicators

Beeper; Datalogic Three Green Lights (3GL™) Good
Read Feedback; Datalogic ‘Green Spot’ on the Code;
Dual Good Read LEDs; Good Transmission

Resolution (Maximum)

2.5 mils

READING RANGES

Typical Depth of Field

리딩 거리 최소 거리는 심볼 길이 및 스캔 앵글에 의해 결정됩니다.
프린팅 해상도, 대비 및 내성 조명에 따라 달라집니다.
Code 39
 5 mils: 3.0 to 32.0 cm / 1.2 to 12.6 in
 7.5 mils: 2.0 to 48.0 cm / 0.8 to 18.9 in
10 mils: 2.0 to 66.0 cm / 0.8 to 26.0 in
20 mils: 3.0 to 110.0 cm / 1.2 to 43.3 in
40 mils: 3.0 to 230.0 cm / 1.2 to 90.6 in
EAN 13
2.0 to 61.0 cm / 1.2 to 24.0 in
주: 리딩 성능은 심볼의 종류에 따라 다를 수 있습니다.

SAFETY & REGULATORY

Agency Approvals

The product meets necessary safety and regulatory approvals for

its intended use.
See the Regulatory Addendum for details.

Environmental Compliance

Complies to China RoHS; Complies to EU RoHS

LED Classification

Product compliant according to IEC 62471

UTILITIES

Datalogic Aladdin™

Datalogic Aladdin configuration program is available for download at no charge.

OPOS / JavaPOS

JavaPOS and OPOS Utilities are available for download at no charge.

Remote Host Download

Available on request

WARRANTY

WARRANTY

3-Year Factory Warranty
