Laser Soldering

Model Name

Series

Laser Soldering

View AllView All Series

Data

Manufacturer information

Laservall Korea

Laser marking machine, Protection sheet, Measuring machine, Welding machine manufacturer

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

Laservall Korea

Product Type

Machine

Brand

SKU

142747

Product Name

Laser Soldering

Model Name

Size

Weight

Product Details

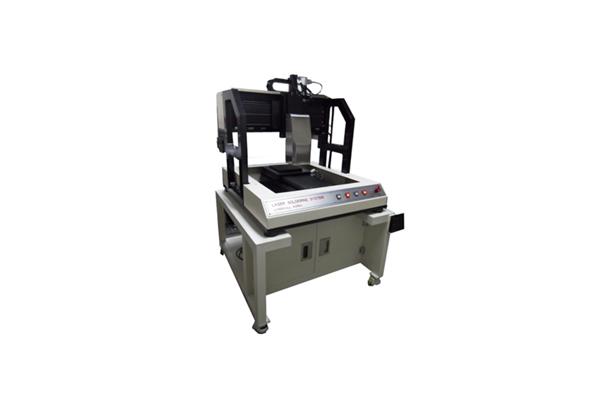

Laser Soldering System

Position teaching is possible. (X, Y, Z)
Offers high resolution camera module and display
Feeding adjustable
Easy working method
Can be custom-made to meet customer specifications

Features

Optical fiber delivery

Automatic soldering

High precision beam positioning

Process monitoring

Supports factory automation easily

Applications

Soldering / Bonding

Heat treating

Powder deposition

Paint stripping

Plastic welding

Technical data

ITEM		SPEC
APPLICABLE		Desktop Laser Soldering
LASER source	Type	DL
	Wave Length	808/9xx
	Average Power	50W
	Fiber Core Size(µm)	400
	N.A.	0.22
	Fiber Length(m)	2
Optics	Collimation Lens	1", f=50mm
	Focusing Lens	1", f=50mm
	Spot size	0.4-1mm
	Laser Mirror	R=98%
	Color Filter	cut-off
Iris		variable
CCD Camera	CCD Sensor	1/2"
	Pixels	1394 x 794
	I/O Card	1394 card
Illumination	LED	Spot type
X-y-z Stage	Full Stroke (x-y-z)	200mmx250mmx50mm/FT
	Speed	300mm/s (x-y) 100mm/s (z)
	Position Repeatability	< ±5µm
	payload	>~10Kg
Workpiece Size		200mm x 210mm
PC & Monitor	PC
PC & Monitor	Monitor
System size	Dimension	600(L)x550(WD)x700(H) mm
