Description
<tab title="Features">

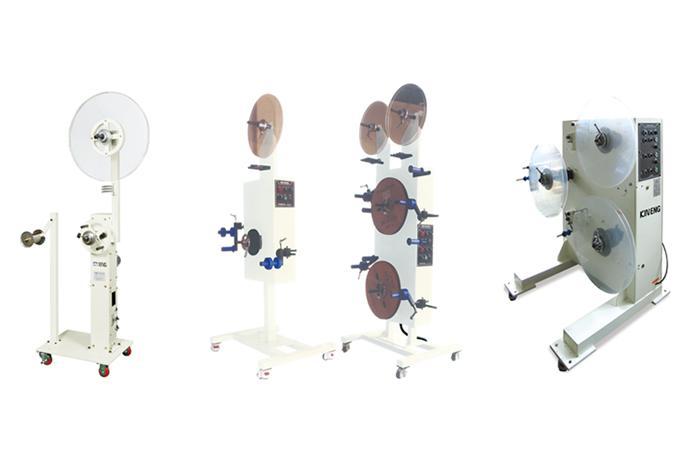

ㆍPrevention of deformation and scratches of materials in case of hanging and rolling of precise electronic components such as lead frame, connector terminal, etc.
ㆍAutomatic guide roller / automatic cutting / counter
ㆍSoft structure with PLC/touch screen
ㆍEasy workability through simple operation
ㆍUsed for various products according to simple adjustment of Bobbin width
<tab title="Specifications">
| 모델 | Model | KNRD-1 | KNRD-2 | KNRD-3 |
| 롤 설치수 | Number of roll installation | 1열 | 2열 | 3열 |
| 롤 외경 | Diameter of rollØ | 600 | ||
| 롤 최대 중량 | Maximum weight of rollkg | 20 | ||
| 롤 회전수 | Rotation of roll회/min | 3~28 | ||
| 모터 | Motorkw×p | 0.2×4 | ||
| 전원 | Power | A (220V 3Ø 50/60Hz) | ||
