  • KYOUNGDONG

    KYOUNGDONG

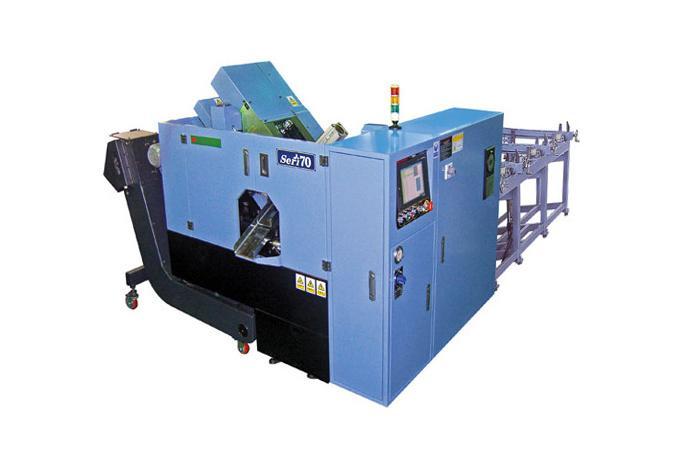

    Metal High Speed Circular Sawing Machine
    Model
    Seri-70
    Series
    Circular Saw Machine

    Product Description

    Metal High Speed Circular Sawing Machine


    Feature

    •High-speed precision circular saw machine / Until round bar cutting 70mm.

    •High-resolution 7*inch touch screen.

    •Error display function automatically detects problems.

    •Residues by laser sensors and remove programs feature.


    Specification

    Description

    unit

    Seri 70

    Cutting Capacity

    Round

    mm

    Ø15 ~ Ø70

    Square

    mm

    15 ~ 60

    Work Length

    mm

    3000 ~ 6000

    Auto Cutting Length

    mm

    10 ~ 9999

    First Cutting length

    mm

    10 ~ 90

    Remain length

    mm

    55

    Saw blade(Carbide Tip)

    Outdia

    mm

    280

    Bore

    mm

    32

    Thickness

    mm

    2

    Speed

    r.p.m

    50 ~ 150

    Main motor

    kw

    4.4

    Saw blade feeding system



    AC Servo

    Rapid speed

    m/min

    12

    Cutting speed

    m/min

    0 ~ 3

    Cutting length input



    Touch panel

    Work feed system



    Ac Servo

    Feed motor

    kw

    1.5

    Hydraulic motor

    kw

    1.5

    Work supply table

    Loading weight

    kg

    3500

    Loading width

    mm

    1000

    Dimesion

    Loading heigth

    mm

    1000

    Total length

    mm

    6400

    Machine length

    mm

    1600

    Width

    mm

    2300

    Height

    mm

    1660

    Weight

    kg

    3400
