KUKDONG MACHINERY

KUKDONG MACHINERY

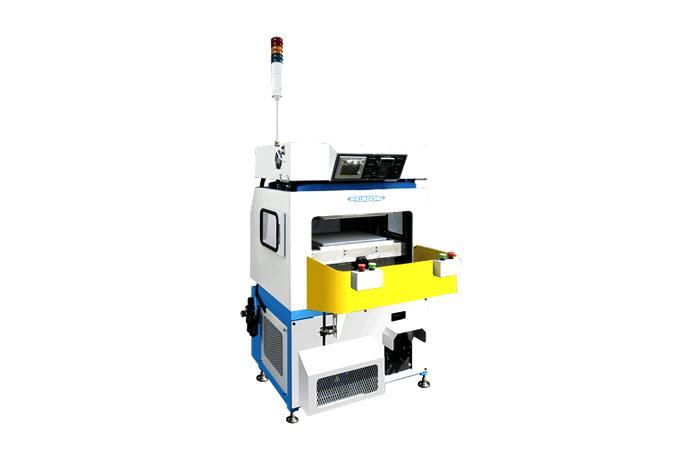

20Ton Fuse/No sew Hot Press

Model

Series

Shoe Machine - Nosew Part


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

Feature

This machine is comprised of Frame parts, upper plate, bottom plate, pillar, heat plate, booster cylinder, pneumatic parts, electronic parts etc. and used for manufacturing to pressing by attaching the fuse mold between the upper plate and bottom plate.



Specification

ㆍStructure : Shuttle type of lower plate(LM Guided rail)

ㆍCapacity : 20Tons

ㆍWorking Pressure : Max.140kg/㎠

ㆍWorking Height : 920mm

ㆍHeat Plate : 700x500x40t(AL6061)

ㆍPlate Distance : 50~200mm

ㆍHeating Elements : 1.1kw x 12ea, 800w x 6ea

ㆍCylinder : Φ140x220st

ㆍElectric Capacity : 20kw
