KTNF

KTNF

X86 Processor Platforms

Model

Series

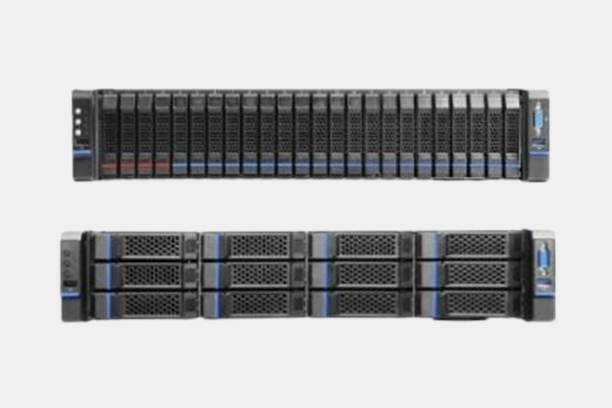

Network Security Appliance Server


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

• Support All LGA 775 CPU
• 2 DIMMs DDR2
• 5 Copper GbE & 2 Fiber GbE ports
• Support 2 Pair LAN Bypass(RJ45)
• Expandable with 4 GbE ports (RJ45 or SFP)



 Specification

Form factor

Dimensions 2U Rackmount, 430x88x430mm(W x H x D)
Weight 13Kg

Platform

Processor Intel Pentium 4 (Quad core, Dual Core, Conroe, Wolfdale, Celeron D) processors in LGA 775
Front Side Bus 800/1066/1333 MHz
Chipset Intel 3210/3200, ICH9

System Memory

Memory Type DDR2 667/800MHz unbuffered, ECC/non-ECC DIMM
Memory Capacity Up to 8GB DDR2 Memory

Network interface

2x Fiber GbE(Intel82576)
4x Copper GbE(Intel82576), w/2-Pair LAN Bypass1x Copper Gbe(Intel82566)
1x Copper GbE(Intel82566)

Storage

Storage Interface 1x SATA II HDD
CF 1x Compact Flash
ETC 1x 44P Disk on module connector

Peripheral

USB 2x USB 2.0 Port
Serial 1x Console Port(RJ45Type)
VGA 1x Internal VGA port

Expansion & Option Card

 1x Mini PCI Slot
 4x Fiber GbE Card
 2x Fiber GbE Card

Display

LEDs Power LED, HDD LED
Module LCD(4 x 20 Character, BLUE)

Power

Watt 300W Redundant ATX Power
Input 100V~240V AC 50~60MHz auto range

Environmental Parameters

Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) Operatiog 5~85%, Storage 5~95%
