KP Electric

KP Electric

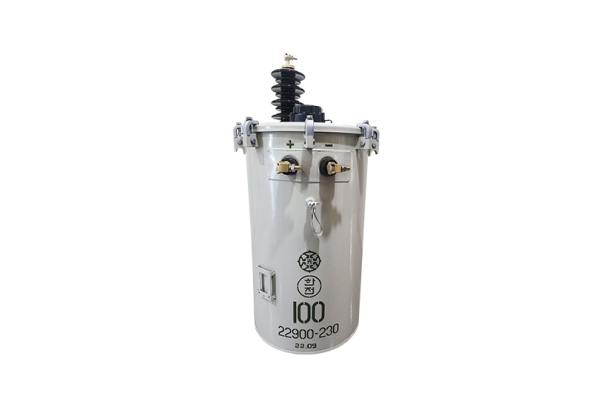

Pole mounted transformer

Model

Series

Oil Type Transformer


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Ratings

ㆍ Frequency 60㎐, 50㎐

ㆍ Primary voltage 22900(Y) / 13200V

ㆍ Secondary voltage 230/115, 460/230V

ㆍ TAP Voltage 14.4 - 13.8 - 13.2 - R12.6 - 12.0㎸ (230/115V)

ㆍ TAP Voltage 13.8 - 13.2 - R12.6 - 12.0 - 11.4㎸ (460/230V)



KP Electric Pole mounted transformer



Characteristics & Dimensions

CAPACITY (kVA) Exciting Current Io(%) Voltage Req. ε (%) Eff n(%) Dimension(mm) Oil (ℓ) Total Weight (㎏)
W D H
20 1.2 1.7 98.1 575 630 1095 60 190
30 1.0 1.5 98.3 655 670 1110 75 250
50 0.8 1.4 98.5 715 700 1135 90 300
75 0.8 1.4 98.5 760 730 1170 95 340
100 0.7 1.3 98.6 830 750 1220 120 420
