KOS

KOS

Stainless Shaped Wire (KOSPRO)

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

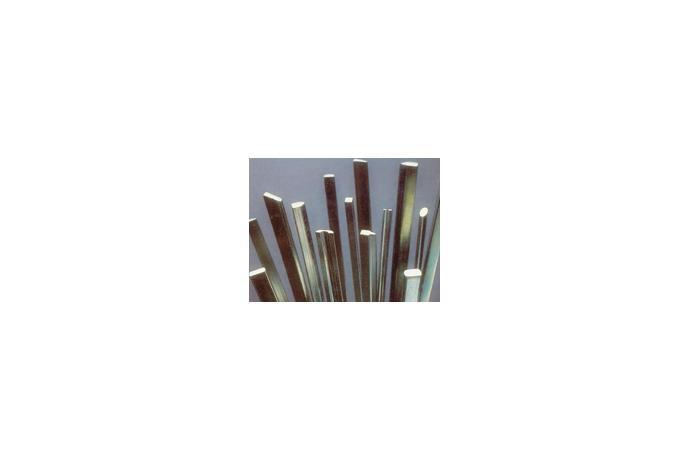

Various Shaped Wires (KOSPRO) including square and rectangular shapes are produced through 1 on 1 customization process, which produces excellent quality and meets provided standard. By observing strict tolerance and straightness of KOSPRO, we guarantee it will produce outstanding post processing results.

Applications
Well Screen, Clamp, Square Wire Spring, Machinery Part,


KOS Stainless Shaped Wire (KOSPRO)


Grade
201, 204Cu, 301, 302, 304, 631J1(17-7PH), 420J2, KOS 440BM

Standard
Thickness : 0.4 - 2.5 mm, Width : 0.4 - 7.0mm,
Allowed Tolerance : Thickness(±0.015mm),
                                 Width(±0.05mm)
Edge Radius : 0.2 - 0.3 mm ,
Straightness : Less than 1mm per 500mm unit
 KOS Stainless Shaped Wire (KOSPRO)  1
Temper
Annealed, Hard(rolled or drawn), Quenched & Tempered

Surface
Bright rolled finish, Residual lubricant drawn finish

Packing
Wooden Drum, Plastic Spool, Steel Spool

Specification
Buyer’s Specification
