This product is manufactured by
KOREA SPECIAL BATTERY
Manufacturer information
KOREA SPECIAL BATTERY
Special Battery manufacturer, Battery for submarine, Torpedo, Battery monitoring system, energy storage device and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
KOREA SPECIAL BATTERY
Product Type
Machine
Brand
-
SKU
122174
Product Name

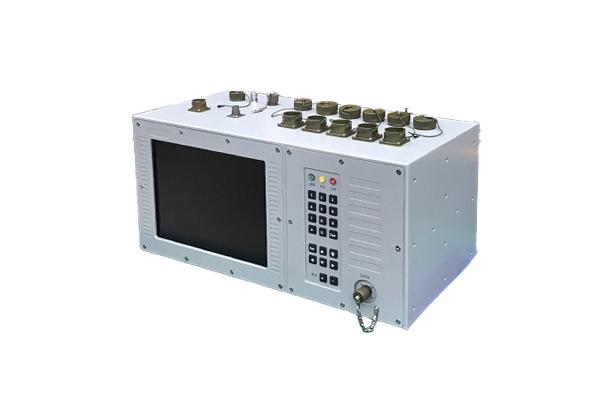

BMS (Battery Monitoring System)
Model Name
-
Size
-
Weight
-
Product Details
Battery monitoring system (BMS) is to regularly measure and monitor the state of the battery. It measures and controls the state of battery and puts the data into the database, thus keeps the battery at the optimal state. Korea Special Battery Co., Ltd. supplies the most suitable and reliable battery monitoring system.
Application
- Propulsion battery for submarine/midget submarine
- Battery for energy storage device
Specifications
| Classification | Specification |
|---|---|
| Input power | AC115V 1Ph/3Ph 60Hz |
| Consumption power | ≤ 600VA |
| Operating temperature | IEC 60092-504 (0~55℃) |
| Humidity | MIL-STD-810G Method 507.5 Humidity |
| Shock | MIL-S-901D |
| EMI/EMC | MIL-STD-461F |
| Protection | IP23 (Control & Monitoring unit) / IP56 (Equipment inside the battery room) |
System configuration
- Click to Zoom
More products
Exercise battery cell for heavyweight torpedo (SUT)
Combat battery for heavyweight torpedo (White Shark)
Exercise battery for heavyweight torpedo (White shark)
Combat battery for heavyweight torpedo (SUT)
CCESS
3000 ton Class
209 Class
214 Class

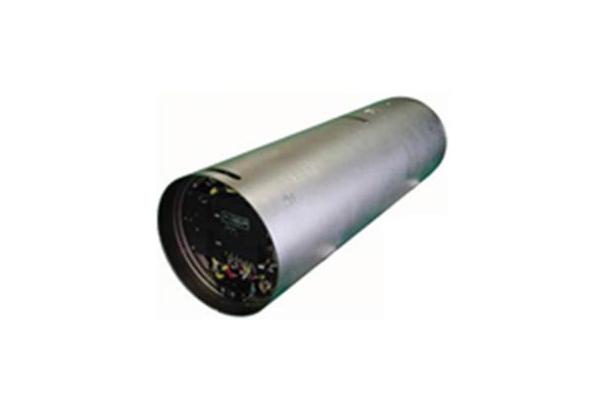

Battery for lightweight torpedo (Blue shark)
Exercise battery cell for heavyweight torpedo (White shark)
Solar Gel BatterySG1000, SG1500, SG2000, SG3000, SG4000

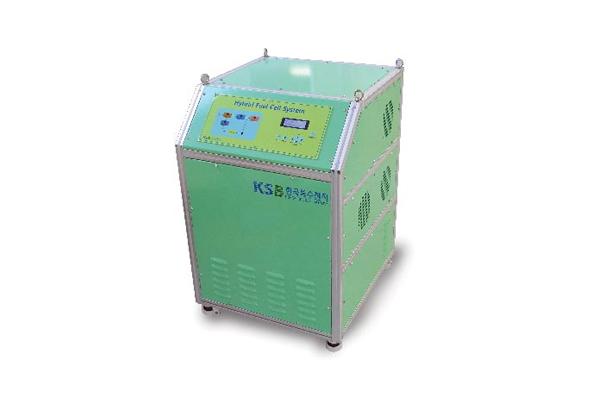

Hybrid Fuel Cell SystemKSBS-A-0001, 10
