    Rotary Joint
    Model
    HR-3825
    Series
    Rotary Joint (R-3800 Series)

    Product Description

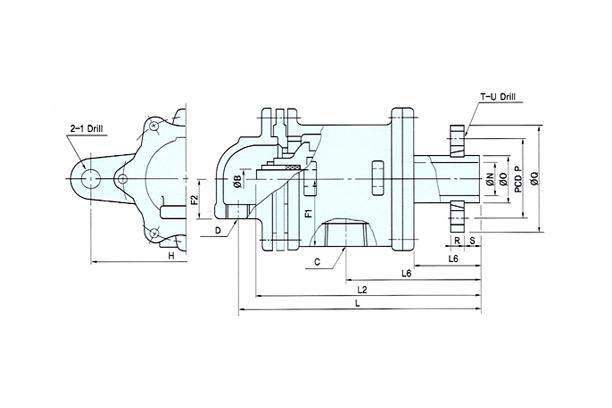

     BCDF1F2HIL1L2L4NOPQRS
    50A34.0PT11/2PT17650200202652621347665951362015
    65A48.6PT2PT11/483572102027827214579701201502020
    80A60.5PT21/2PT2102652402331530816085901251542020
    90A76.3PT3PT2110803002337636817893981401982220








    STRUCTURE


    • SHAFT

    Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of (screw type) and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise) [right screw if counter-clockwise] In case of Flange, there's no relation with rotation direction of Shaft. In addition, in the middle of Shaft, there's sliding part of spherical surface.


    • HEAD

    It's the connect part of supply and discharge of fluid, and INNER PIPE is attached to compound. As for Inner Pipe, Taper screw for KS pipe is concluded if screw type, and screw direction of Inner Pipe corresponds to screw direction of Shaft. And, in case of Flange Type, only with right screw, Lock Nut is used as the PARALLEL PIPE THREADS.


    • BODY

    In the right & left of Body, there's a hole to install Stopper so prevents rotation of body for the initial rotation.


    MAXIMUM PRESSURE15Kgf / ㎠G
    MAXIMUM TEMPERATURE300℃
    MAXIMUM ROTATION NUMBER10A-25A 300rpm32A-80A 150rpm
    FLUIDsteam, heat water, heat medium, cooling water, oil, air



    Product List

    Rotary Joint (R-1000 Series)

    Rotary Joint
    HR-1025
    Rotary Joint
    HR-1021, HR-1022
    Rotary Joint
    HR-1015
    Rotary Joint
    HR-1005
    Rotary Joint
    HR-1011, HR-1012
    Rotary Joint
    HR-1001, HR-1002

    Rotary Joint (R-2000 Series)

    Rotary Joint
    R-2300
    Rotary Joint
    BR-2025
    Rotary Joint
    BR-2021, BR-2022
    Rotary Joint
    BR-2015
    Rotary Joint
    BR-2005
    Rotary Joint
    BR-2011, BR-2012
    Rotary Joint
    BR-2001, BR-2002
    Rotary Joint
    HR-2216, HR-2217
    Rotary Joint
    HR-2206, HR-2207
    Rotary Joint
    HR-2225
    Rotary Joint
    HR-2221, HR-2222
    Rotary Joint
    HR-2215
    Rotary Joint
    HR-2205
    Rotary Joint
    HR-2211, HR-2212
    Rotary Joint
    HR-2201, HR-2202

    Rotary Joint (R-2500 Series)

    Rotary Joint
    HR-2511, HR-2512
    Rotary Joint
    HR-2501, HR-2502

    Rotary Joint (R-3600 Series)

    Rotary Joint
    HR-3615
    Rotary Joint
    HR-3605
    Rotary Joint
    HR-3611, HR-3612
    Rotary Joint
    HR-3601, HR-3602

    Rotary Joint (R-3700 Series)

    Rotary Joint
    HR-3725
    Rotary Joint
    HR-3715
    Rotary Joint
    HR-3715
    Rotary Joint
    HR-3705
    Rotary Joint
    HR-3711, HR-3712
    Rotary Joint
    HR-3701, HR-3702

    Rotary Joint (R-3800 Series)

    Rotary Joint
    HR-3825
    Rotary Joint
    HR-3812,HR-3822
    Rotary Joint
    HR-3815
    Rotary Joint
    HR-3805
    Rotary Joint
    HR-3811, HR-3812
    Rotary Joint
    HR-3801, HR-3802

    Rotary Joint (R-5000 Series)

    Rotary Joint
    HR-5205-15A
    Rotary Joint
    HR-5011-20A
    Rotary Joint
    HR-5021, HR-5006

    Rotary Joint (R-6000 Series)

    Rotary Joint
    HR-ADF-15A
    Rotary Joint
    HR-6012-M16

    Swivel Joint

    Swivel Joint
    U-5000 (B)
    Swivel Joint
    U-4000 (W)
    Swivel Joint
    U-3000 (C)
    Swivel Joint
    U-2000 (D)

    Ball Joint

    Ball Joint
    OB 6391
    Ball Joint
    OB 6291
    Ball Joint
    OB 6191

    Syphon Elbow

    Syphon Elbow
    HS-0020

    Syphon Hose

    Syphon Hose
    HS-8040
