Rotary Joint

Model

Series

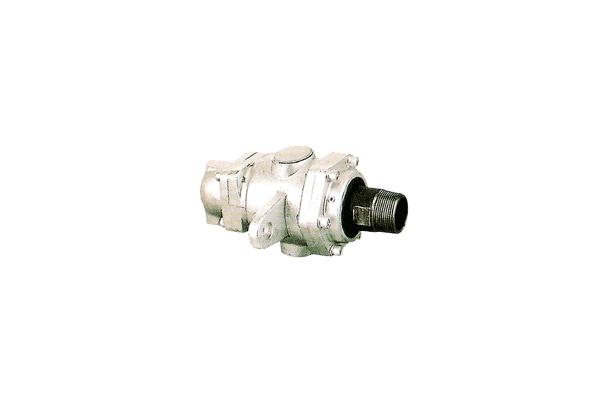

Rotary Joint (R-3700 Series)


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

 ABCDEF1F2GHIJLL1L2L3L4L5L6L7NXNet
Wt.kg
15APT1/210.5PT1/2PT1/281424210110Φ151401841701631519686441814212.09
20APT3/413.8PT3/4PT3/494504910130Φ1516019517817015610292462018262.80
25APT117.3PT1PT3/4100554912140Φ1517020819118316910997482523323.48
32APT11/421.7PT1PT3/4118654112180Φ19220248230206190126114502530466.85
40APT11/227.2PT1PT3/4118654112180Φ19220248230206190126114502534466.45
50APT234.0PT11/2PT1144804814200Φ19240272250219203140126543048Φ109.77
65APT21/248.6PT2PT11/2162905816220Φ23270295265231213145129583060Φ1013.27
80APT360.5PT21/2PT21821056816240Φ23290351315271253170154623570Φ1019.93






• SHAFT

Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of [screw type] and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise] [right screw it counter-clockwise] In case of Flange, there's no relation with rotation direction of Shaft. In addition, in the middle of Shaft, there's sliding part of spherical surface.


• HEAD

Head is the connect part of supply and discharge of fluid, and INNER PIPE is attached to compound. Usually parallel KS PIPE threads is used for screw of interior pipe. For prevention of unwound, Lock Nut is uded. Figure above is fixed-type compound interior pipe with supply and discharge parts. In addition, there are single L type and compound interior pipe of rotation type equipped with only one side of supply or discharge. And, as for rotation mechanism part, there's Bearing both for ⑤Seal with functions to support Shaft and Seal function at Head unlike the existing ones.


• BODY

As for Body, ⑤BEARING CARBON & ⑥Bearing support load of Body. Furthermore, Seal surface of Body is composed of plane Seal surface with ⑨SEAL CARBON. Bearing is manufactured from high performance Carbon with perfect oilless type.


MAXIMUM PRESSURE15Kgf / ㎠G
MAXIMUM TEMPERATURE300℃
MAXIMUM ROTATION NUMBER10A-25A 300rpm32A-80A 150rpm
FLUIDsteam,heat water, heat medium, water, cooling medium, oil, air
