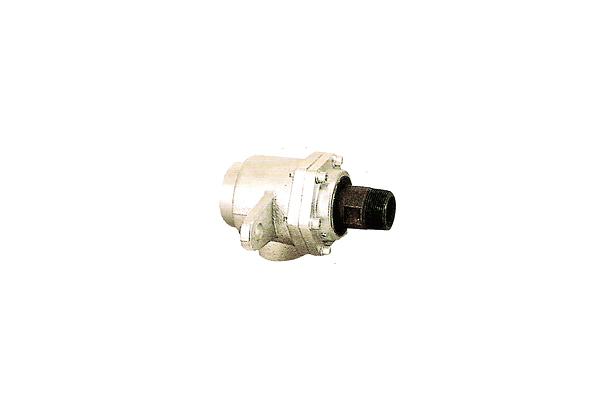

    Rotary Joint
    Model
    HR-3711, HR-3712
    Series
    Rotary Joint (R-3700 Series)

    Product Description

     ACEF1GHIJLL4L5L6L7NXNet
    Wt.kg
    15APT1/2PT1/2814210110Φ151401419686441814212.03
    20APT3/4PT3/4945010130Φ1516014710292462018262.65
    25APT1PT11005512140Φ1517016010997482523323.23
    32APT11/4PT11/41186512180Φ19220187126114502530465.70
    40APT11/2PT11/21186512180Φ19220187126114502534465.70
    50APT2PT21448014200Φ19240200140126543048Φ108.23
    65APT21/2PT21/21629016220Φ23270210145129583060Φ1011.45
    80APT3PT318210516240Φ23290250170154623570Φ1017.23





    • SHAFT

    Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of [screw type] and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise] [right screw it counter-clockwise] In case of Flange, there's no relation with rotation direction of Shaft. In addition, in the middle of Shaft, there's sliding part of spherical surface.


    • HEAD

    Head is the connect part of supply and discharge of fluid, and INNER PIPE is attached to compound. Usually parallel KS PIPE threads is used for screw of interior pipe. For prevention of unwound, Lock Nut is uded. Figure above is fixed-type compound interior pipe with supply and discharge parts. In addition, there are single L type and compound interior pipe of rotation type equipped with only one side of supply or discharge. And, as for rotation mechanism part, there's Bearing both for ⑤Seal with functions to support Shaft and Seal function at Head unlike the existing ones.


    • BODY

    As for Body, ⑤BEARING CARBON & ⑥Bearing support load of Body. Furthermore, Seal surface of Body is composed of plane Seal surface with ⑨SEAL CARBON. Bearing is manufactured from high performance Carbon with perfect oilless type.


    MAXIMUM PRESSURE15Kgf / ㎠G
    MAXIMUM TEMPERATURE300℃
    MAXIMUM ROTATION NUMBER10A-25A 300rpm32A-80A 150rpm
    FLUIDsteam,heat water, heat medium, water, cooling medium, oil, air
