    Rotary Joint
    Model
    HR-3601
    HR-3602
    Series
    Rotary Joint (R-3600 Series)

    Product Description

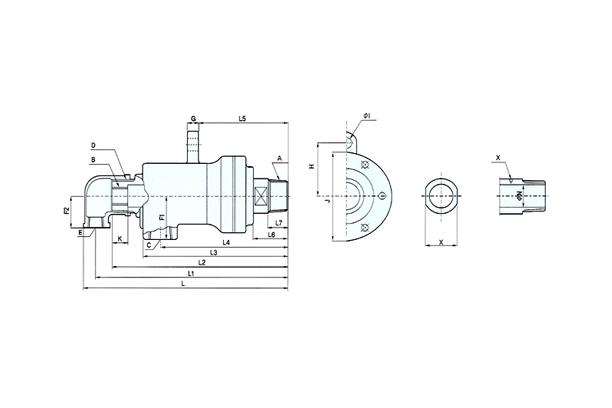

     ABCDEF1F2GHIJKLL1L2L3L4L5L6L7NXNet
    Wt.kg
    25APT1PF3/8PT1PT11/4PT3/45240166514851524322620417014411343232332
    32APT11/4PF1/3PT11/4PT11/2PT3/461431570191102028420623820317612949253046
    40APT11/2PF3/4PT11/4PT11/2PT3/461431570191102028426323820317612949253446
    50APT2PF1PT11/2PT2PT1735116922313025324263278238204156633048Ø10
    65APT21/2PF11/2PT2PT21/2PT11/28462181102314830356303294256210166603060Ø10
    80APT3PF2PT21/2PT3PT2106802412525Ø18426434.5394.5356.5314.5262.5198.572.535708527







    • SHAFT

    Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of [screw type] and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise] [right screw if counter-clockwise] In case of Flange, there's no relation with rotation direction of Shaft. In addition, in the middle of Shaft, there's sliding part of spherical surface.


    • HEAD

    It's the connect part of supply and discharge of fluid, and INNER PIPE is attached to compound. For screw of interior pipe, usually (PE)Look Nut is concluded only with parallel KS PIPE threads. And, in case of Flange Type, interior pipe is done only with right screw and Look Nut is used as parallel KS PIPE threads.


    • BODY

    In the top middle of Body, there's a hole to install Stopper so prevents rotation of body for the initial rotation. And prevents damage of Flexible Hose.


    MAXIMUM PRESSURE15Kgf / ㎠G
    MAXIMUM TEMPERATURE300℃
    MAXIMUM ROTATION NUMBER10A-25A 300rpm32A-80A 150rpm
    FLUIDsteam, heat water, heat medium, cooling water, lil, air
