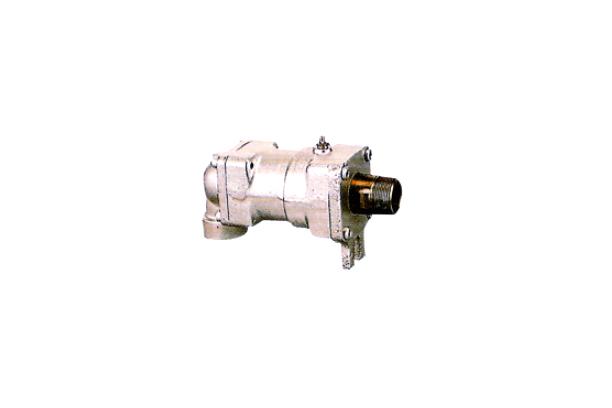

    Rotary Joint
    Model
    HR-1011, HR-1012
    Series
    Rotary Joint (R-1000 Series)

    Product Description


     ACEF1GHIJLL4L5L6L7NXNet
    Wt.kg
    10APT3/8PT1/278438551434184169 40188211.9
    15APT1/2PT1/278438551434184169 401812211.9
    20APT3/4PT3/4904510652040203183 382018263.2
    25APT1PT11106010732040231207 492524325.4
    32APT11/4PT11/41307513952050270239 532530469.4
    40APT11/2PT11/21307513952050270239 532534469.4
    50APT2PT213883141002055292253 493048Ø1012.0
    65APT21/2PT21/218095181202560342295 533060Ø1022.0
    80APT3PT319410025230Ø18266370315611403573Ø1025.0
    100A








    Stable Seal function raises economical efficiency with durability by structure to apply Mechanical Seal instrument built-in Bearing & Carbon for high Performance Seal.




    STRUCTURE


    • SHAFT
    Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of (screw type) and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise) [right screw if counter-clockwise)

    • HEAD
    Head is the connect part of supply and discharge of fluid, and WINNER PIPE is concluded for compound.
    per screw for KS pipe is concluded if screw type, and screw direction of Inner Pipe corresponds to the screw direction of a pivot. And, in case of Flange Type, only with right screw, Lock Nut is used as the PARALLEL PIPE THREADS.

    • BODY
    Body is composed of 9ARBON BELLOWS as the Seal mechanism part including & BEARING under load of Rotary Joint. Bellows part keeps airtight by increasing or decreasing Seal surface pressure automatically with strength proportionate to inside fluid pressure, protects wear of Seal surface and absorbs minute vibration,

    • COVER
    As the Cover to press Ball Bearing inserted into the body, packing is inserted including FELT RING in order for Grease of Bearing not to leak to outside.


    MAXIMUM PRESSURE

    15Kgf / ㎠G

    MAXIMUM TEMPERATURE

    180℃

    MAXIMUM ROTATION NUMBER

    15A-40A 300rpm50A-80A 150rpm

    FLUID

    steam, water, hot water, oil, air, heat medium
