KOREA HOIST

KOREA HOIST

Air Hoist

Model

Series

Air Hoist


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

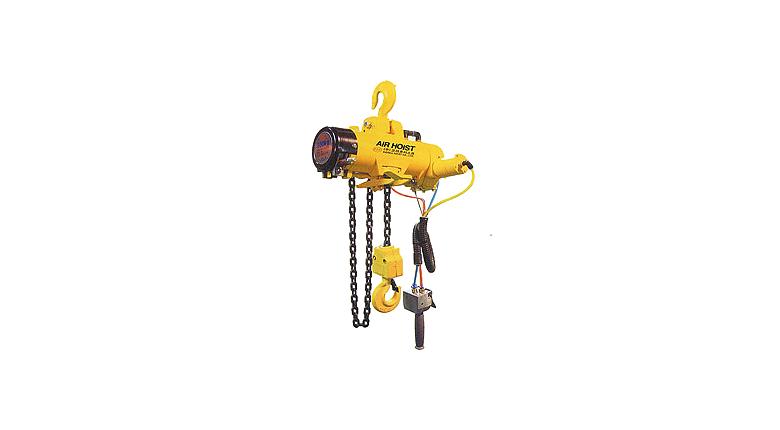

Korea Hoist Air Hoist KA Series 1

Capacity : 250 ~ 1,000kg

Speed : 4.5 ~ 10m/min



Specification (KA1,2  Series)

Model Capacity Lift Speed(m/min) Lift
(m)
Air
Pressure
(kgf/cm²)
Air
Consumption
(m³/min)
Weight Hose Dia
(mm)
No Load Rated Load
Up Down Up Down
KA1S-025
250 24 15 10 19 3 6 1.4 23

Φ 12/L=Less than 10m

Φ 20/L=Less 10 ~20m

KA1M-025
41
KA1S-050
500 17 13 9 24 3 6 1.4 23
KA1M-050 47
KA1S-100

1,000

8.5 6.5 4.5 12 3 6 1.4 33
KA1S-100
57
