Konghwa Precision Tool

Konghwa Precision Tool

Radius Long (2F)

Model

Series

End Mills


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

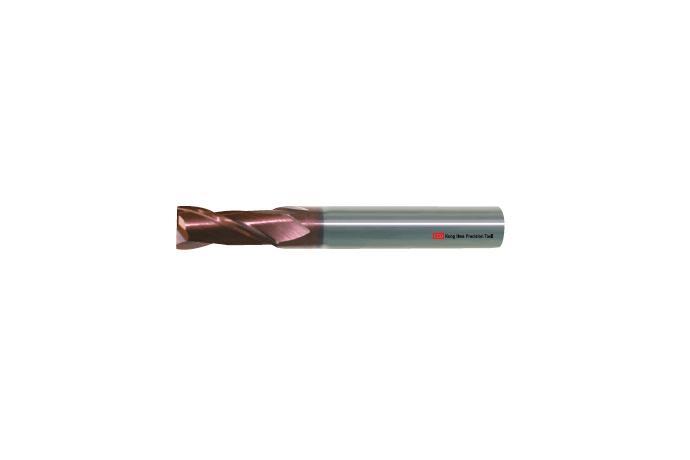

Konghwa Precision Tool Radius Long (2F) CRLA-2 Series

CODE NO Diameter Corner
Radius
Length of
Cut
Overall
Length
Shank Dia
ΦD R L1 L Φd
CRLA 20302 3.0 0.2 9 60 6
CRLA 20305 3.0 0.5 9 60 6
CRLA 20402 4.0 0.2 12 65 6
CRLA 20405 4.0 0.5 12 65 6
CRLA 20605 6.0 0.5 20 90 6
CRLA 20610 6.0 1.0 20 90 6
CRLA 20805 8.0 0.5 25 90 8
CRLA 20810 8.0 1.0 25 90 8
CRLA 20815 8.0 1.5 25 90 8
CRLA 21005 10.0 0.5 30 100 10
CRLA 21010 10.0 1.0 30 100 10
CRLA 21015 10.0 1.5 30 100 10
CRLA 21020 10.0 2.0 30 100 10
CRLA 21205 12.0 0.5 30 100 12
CRLA 21210 12.0 1.0 30 100 12
CRLA 21215 12.0 1.5 30 100 12
CRLA 21220 12.0 2.0 30 100 12
