KNTEC

KNTEC

pH/ORP Analyzer

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

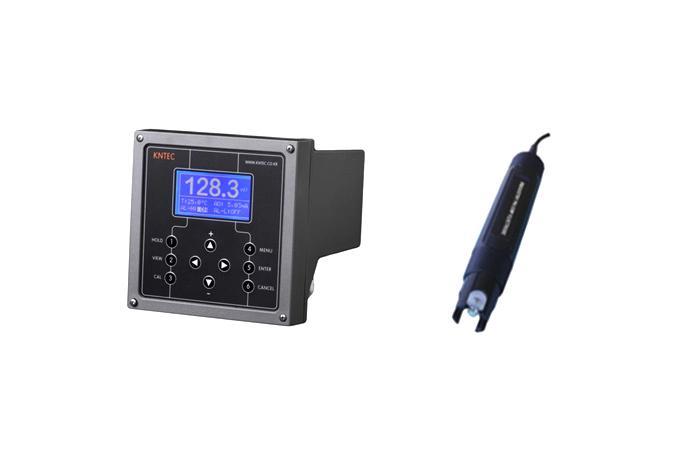

DescriptionKNTEC-CPH-02

 Measuring Range

0~14 pH

 Resolution

0.01 pH

 Accuracy

±0.01 pH

 Display Screen

LCD DOT MATRIX (128*64 pixel)

 Data Outlet

4 ~ 20 mA 2 ea, Alarm 2 ea

 Encloser

ABS+PC, NEMA 4X, IP65

 Case Dimensions

154 mm X 154 mm X 160 mm
(Panel cutout: 137 mm X 137 mm)

 Sample Temperature

5 ~ 50°C

 Sample Flow

100~300ml/min

 Chamber Type

STS316, Screw type chamber cap

 pH Electrode

Glass , Cable Disconnector Type

 Temperature Electorde

Pt100

 Degree of Protection

IP65(NEMA 4x): Electronics

 Power

AC 100~240VAC, 50~60Hz

 Mounting

Pipe, Wall, Panel

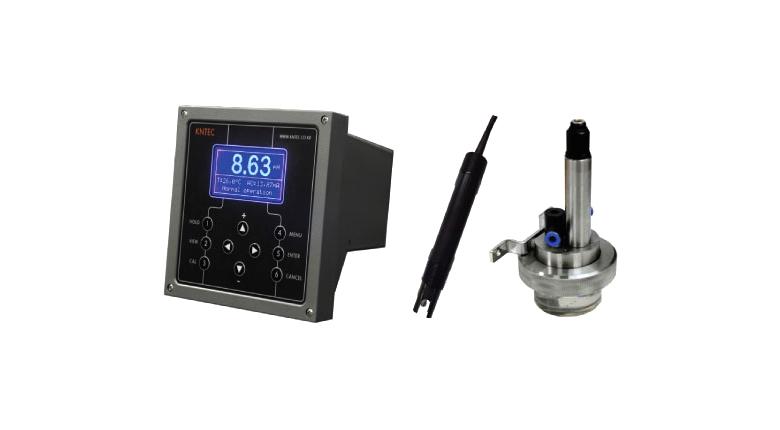

DescriptionKNTEC-COR-01

 Measuring Range

-2000 mv ~ 2000 mv

 Accuracy

± 1 mV

 Display Screen

LCD DOT MATRIX (128*64 pixel)

 Data Outlet

4 ~ 20 mA 2 ea, Alarm 2 ea

 Encloser

ABS+PC, NEMA 4X, IP65

 Case Dimensions

154 mm X 154 mm X 160 mm
(Panel cutout: 137 mm X 137 mm)

 Sample Temperature

5 ~ 50°C

 Sample Flow

100~300ml/min

 Conductivity Cell

STS 316

 Electrical Connection

4 wire

 Temperature Electorde

Pt 100, Pt 1000

 Degree of Protection

IP65(NEMA 4x): Electronics

 Power

AC 100~240VAC, 50~60Hz

 Mounting

Pipe, Wall, Panel
