KNTEC

KNTEC

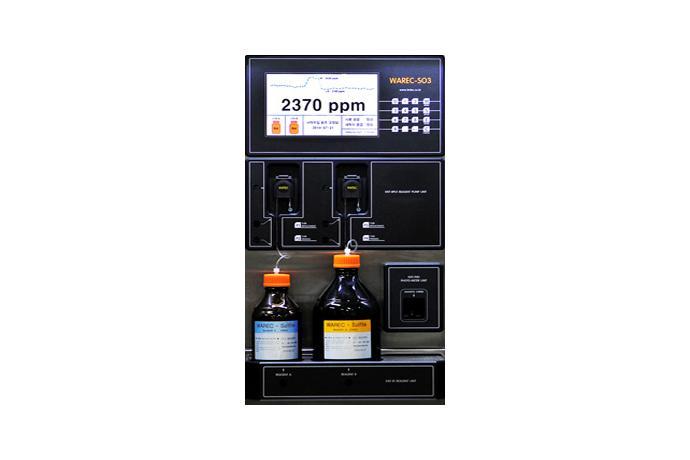

Sulphite(SO3) Analyzer

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Convenient maintenance

ㆍMinimize interference from turbidity

ㆍStatus of operating stirr check function

ㆍData storage function (USB)

10.2" Color LCD Monitor

Display of data trend

Alarm function for lack of reagents or sample

Automatic calibration by standard solution

Automatic cleaning system

Vibration reducing device included

Applications

ㆍPower plants, Iron works, Paper industry, Incinerators etc.

ㆍDesulphurization treatment system



Technical Specifications

Model ASP-250

Measure principle

Colorimetric Method

Measuring Range

1~25,000 ppm

Display

1 ppm

Accuracy

±2% of Reading

Response Time

15 min App.

Sample Pressure

1~5 Bar

Sample Temp.

5 ~ 45 ℃

Sample Flow

200~700 ml /min

Sample Connections

Inlet 6mm / Outlet 10mm

Reagent Consumption

30 days (A/1L, B/2L)

Data Output

4 ~ 20 mA 2 ea, Alarm 2 ea

Dimensions

600W X 1850H X 500D (Self Standing Type)

Degree of Protection

IP65(NEMA 4x): Electronics, IP55(NEMA 4): Wet part

Power

100~240 VAC (50/60 Hz)
