product Image

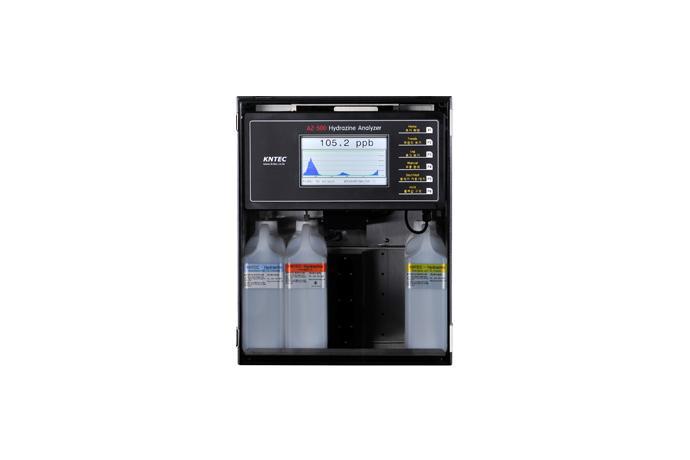

Hydrazine(N2H4) Analyzer
Model Name
AZ-500
Series
Products
View All
Data
-
Manufacturer information
provider logo
KNTEC

Water quality control system manufacturer, Silica analyzer, Phosphate analyzer, Steel analyzer and more

Problem with product info?
Update request
Manufacturer
KNTEC
Product Type
Machine
Brand
-
SKU
48984
Product Name
Hydrazine(N2H4) Analyzer
Model Name
AZ-500
Size
-
Weight
-
Product Details

Convenient maintenance

ㆍEasy tube replacement & disassembly

ㆍNo defect due to simplified structure

ㆍData storage function (USB)

7" Color LCD Monitor & Touch Screen

Display of data trend

Alarm function for lack of reagents or sample

Automatic calibration by standard solution

Multichannel operation (1~3ch)

Applications

ㆍPower plants, Industrial boiler system etc.



Technical Specifications

Model AZ-500

Measure principle

 Colorimetric method

Measuring Range

 0~100 to 0~500 ppb

Display

 0.1 ppb

Accuracy

 ±2.0 ppb or ±5% of reading

Temperature Compensation

 Automatic

Calibration

 Automation(Standard solution)

Sample Pressure

 1~5 Bar

Sample Temperature

 5 ~ 45 ℃

Sample Flow

 200~500 ml /min

Sample Connections

 Inlet 6mm / Outlet 10mm

Reagent Consumption

 30 days (A/2L, STD/2L*2)

Data Output

 4 ~ 20 mA 2 ea, Alarm 2 ea

AUX ports

 DI(2), DO(2), Option (AI, AO)

Dimensions

 400W X 500H X 200D (Flush Type, Wall Mount Type)

Degree of Protection

 IP65(NEMA 4x): Electronics, IP55(NEMA 4): Wet part

Power

 100~240 VAC (50/60 Hz)
