KNTEC

KNTEC

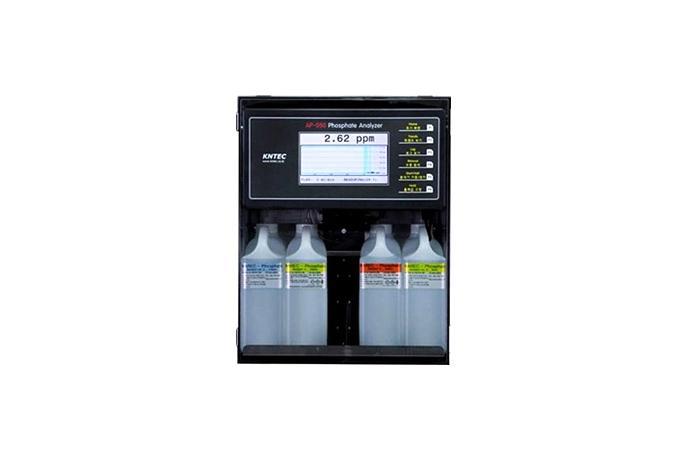

Phosphate(PO4) Analyzer

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Convenient maintenance

ㆍEasy tube replacement & disassembly

ㆍNo defect due to simplified structure

ㆍData storage function (USB)

7" Color LCD Monitor

Display of data trend

Alarm function for lack of reagents or sample

Automatic calibration by standard solution

Multichannel operation (1~6ch)

Applications

ㆍPower plants, Industrial boiler system etc.

ㆍPhosphate(PO4) monitoring of the industrial boiler & & cooling tower system



Tecgnical Specifications

Model AP-05P

Measure principle

Colorimetric Method

Measuring Range

0~5.0 ppm

Display

0.01 ppm

Accuracy

±0.1 ppm or ±5% of reading

Response Time

12 min App.

Sample Pressure

1~5 Bar

Sample Temperature

5 ~ 45 ℃

Sample Flow

200~500 ml /min

Sample Connections

Inlet 6mm / Outlet 10mm

Reagent Consumption

60 days (A,B, STD/2L)

Data Output

4 ~ 20 mA 2 ea, Alarm 2 ea

AUX ports

DI(2), DO(2), Option (AI, AO)

Dimensions

400W X 500H X 200D (Flush type, Wall Mount type),
700W X 1800H X 400D (Self-standing type)

Degree of Protection

IP65( NEMA 4x): Electronics, IP55(NEMA 4): Wet part

Power

100~240 VAC (50/60 Hz)
