KMT

KMT

Fractional CO2 Laser

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Fractional
CO2 Laser

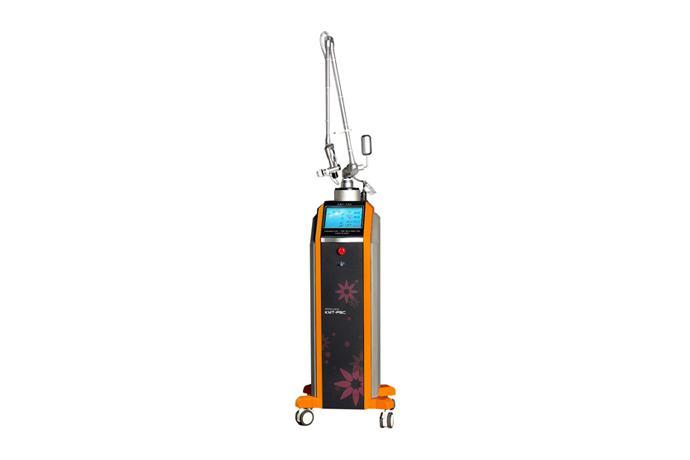

/ KMT-FSC Scanner Fractional CO2 + 30W Ultra Pulse CO2 Laser

*RF Tube KMT-FSC model is also available.

KMT-FSC is Fractional CO2 Laser that is equipped with 1 complete set of 30W Ultra Pulse CO2 Laser inside the system.



Specifications

Laser Type

Scanner Fractional CO2
+ 30W Ultra Pulse CO2 Laser

Operation Mode

Fractional(Scanner Mode)
/ CO2(Ultra Pulse, Pulse, CW) Mode

Wavelength

10.6μm

Beam Mode

TEMoo

Power to Tissue

35W

CO2 Mode

Ultra Pulse: 0.5~10W(Peak power:300W)
/ CW: 0.1~30W

Spot Size

0.1mm

Cooling System

Water Cooling

Aiming Beam Source

Wavelength: 650nm / Output: 5mW

Articulated Arm

Number of reflection lens: 7pcs
/ Energy flux.: Over 75%

Rated Voltage and Frequency

AC 220V~240V, 50/60Hz

Power Consumption

450W

Dimensions

480mm(W) x 380mm(D) x 1,180mm(H)

Weight

39kg

Inquiry
