  • KMC PRESS

    Link Press
    Model
    KLM-400P4, KLM-600P4, KLM-800P4, KLM-1000P4, KLM-1200P4, KLM-1500P4, KLM-2000P4, KLM-2400P4
    Series
    Mechanical Press

    Product Description

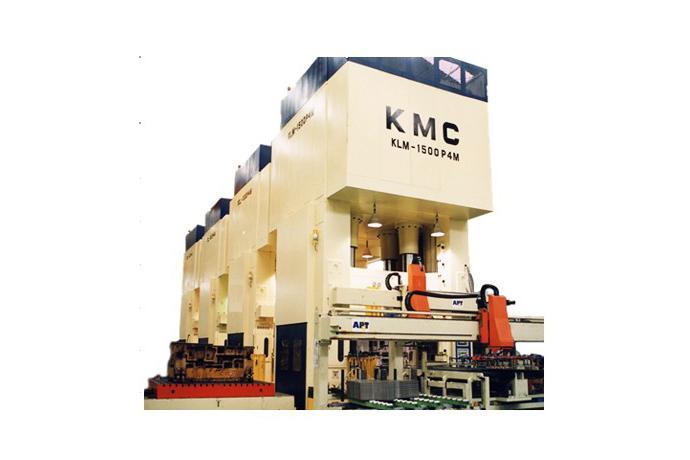

    KLM 4P Series / H-Type 4Point Link Motion Press

    Capacity(Ton) 400 ~ 2400
    It is designed with H-shaped powerful frame structure and craakless drive system and built in resistant structure to shocks at driving parts that of the disadvantages of crank type.

    - HYDRAULIC OVERLOAD PROTECTOR DEVICE

    - SLIDE ADJUSTMENT DEVICE

    - CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM

    - 4POINT 4 PHASES STRUCTURE

    - STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY

    - MOVING BOLSTER SYSTEM

    - BROAD WORKING SPACE

    - SUITABLE FOR VARIOUS SHEET MATAL PROCESSING SUCH AS BLANKING, PIERCING AND TAMPING,ETC.

    - PHOTOELECTRIC SAFETY DEVICE

    - AIR EJECTOR

    - FREE SET COUNTER




    Standard Specifications

    SpeciflcarionUnitKLM-400P4KLM-600P4KLM-800P4KLM-1000P4KLM-1200P4KLM-1500P4KLM-2000P4KLM-2400P4
    Capacityton40060080010001200150020002400
    Limit of Capacitymm1313131313131313
    Strokemm500500500500600600700800
    Number of Strokespm2020222020181818
    Die Heightmm13001300100010001200120012001200
    Adjustment of slidemm500500600600600600600600
    Area of slidemm3000x18003000x18003000x20003300x22003700x23003700x23004000x25004600x2500
    Area of Bolstermm3000x18003000x18003000x20003300x22003700x23003700x23004000x25004600x2500
    Working heightmm750750750750750750750750
    Main Motorkwxp75X490X4110X4135X4185X4220X4250X4350X4
    Die Cushion
    Capacityton5080100120150150200200
    Strokemm200250250250300300300300
    Pad Areamm2400x12002400x12002400x12002700x15002900x15003200X17003800X19003800X1900
    Air PressureKg/cm²55555566




    Products Information

    Type A


    Type B



    KLM P4 링크모션의 특징

    1.가공능력  하사점 상 높은 위치에서의 허용능력은 높고 깊은 교축가공에 이용된다.

    2.가공속도  링크의 기구를 이용해 가공부분의 속도가 느리게 작동이 된다.

    3.제품의 성형성 축 속도가 느리고 속도의 변동율이 적어 제품의 성형에 유리하다.

    4.제품의 생산성  저속 가공, 빠른 상승속도에 생산 속도를 올릴수 있다. 자동화 작업시 상승속도에 따른 시간의 제약을 받는다.

    5.기계의 진동  가공이 될때(타발 시) 속도가 느려지므로 블랭킹 등의 소음및 진동이 적은 편이다.


    Features

    - Sutable for Drawing process of sheet metal

    - Auto Die Change and Robot operation available

    - Electric Moving bolster

    - Compact design with stage cover


    Selection

    1. DC MOTOR

    2. DIE CUSHION

    3. ANTI-VIBRATION UNIT

    4. QUICK DIE CHANGE

    5. MOVING BOLSTER

    6. KNOCK OUT DEVICE

    7. AUTO TRANSFER DEVICE
