    ∅45 LED Sign Tower
    Model
    -
    Series
    LED Sign Tower

    Product Description

    Features

    1. ∅45 columnar structure of the round geometry.
    2. New concept design, visibility enhancement.
    3. Lenses for maximum light diffusion as wrinkles.
    4. Located at the top of the buzzer and the sound can be controlled volume with dial knob.
    5. Shock-resistant polycarbonate material reinforces the reliability by applying the lens.
    6.


    Performance



    Current consumption

    Category12V AC/DC24V AC/DC110V AC220C AC



     Number of stack

    1단100mA100mA



    3W이하



    4W이하

    2단130mA130mA
    3단155mA155mA
    4단180mA180mA
    5단210mA210mA



    Name composition


    External form / Drawing

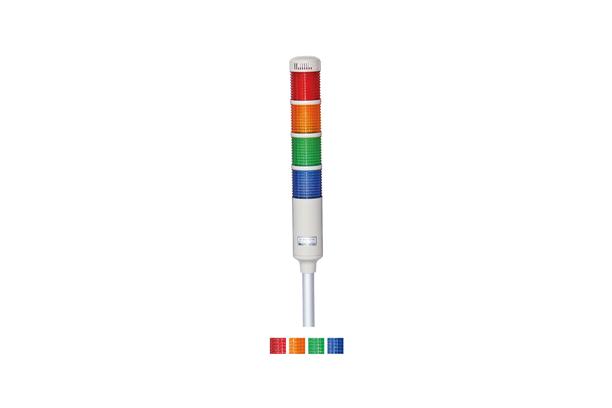

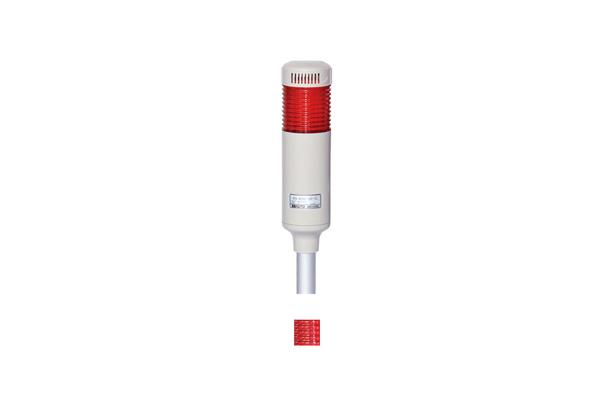

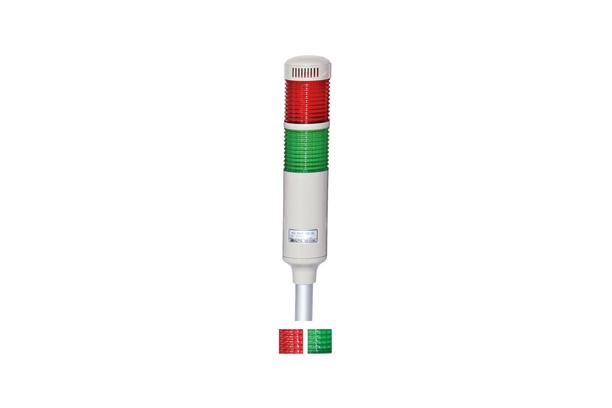

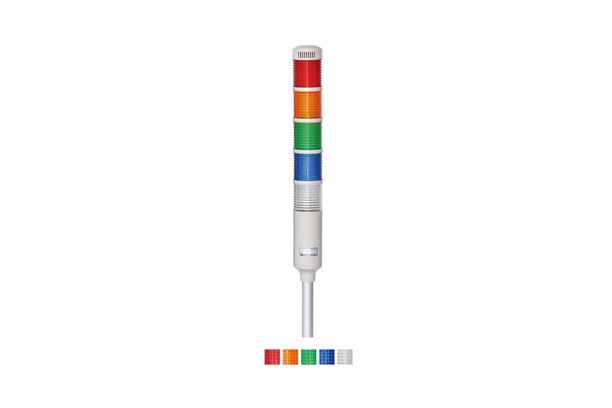

    LED Lamp Stack 1


    LED Lamp Stack 2



    LED Lamp Stack 3



    LED Lamp Stack 4



    LED Lamp Stack 5




    Connection diagram

    ▶ 점등 & 부져전용


    ▶ 점등 & 점멸 & 부져

    접점 구동


    NPN  Transistor drive


    PNP Transistor drive


    1. Be sure to observe final period in accordance with the connection diagram of each specifications.
    2. If flashing, lighting AC specification. never connect the power line(black, orange) and flashing(pink),
         lighting(sky blue) line don't get together.
    3. When you connect a buzzer for flashing line (pink) and lighting line(sky blue) You can choose a broken sound and continuous sound.
        If you need to connect the line with the desires. Lamp and Buzzer at the same time.



    Appearance



    Panel cutout




    Safety information

    Danger
    1. Be sure to turn off power before connecting wires or changing LED Kit, it can cause electric shock.

    Warring
    1. Please check for the correct connecting wire before installing it. Incorrect wiring will cause a break down of product.
    2. Please check for the correct voltage, Over voltage will cause by malfunction of product.

    Caution
    1. This product is only suitable for indoor use.
    2. Applying a strong shock on the out side of product may cause a break down.
    3. Please refer to the "wiring diagram" when you wire the product.
    4. When mounting(dismounting) the product, please conduct operations after turning off the power of the main unit.
    5. Please choose place that has sufficient strength and vibration.
    6. Please be cautions that contact with chemical such as thinner or benzene can cause of deformation of the product or color of change.
    7. The contents of this manual may be changed without prior notification.


    Part

    DivisionFormCodeExplain


    P Type Stand



    KG-45SP (Beige)
    KG-45SPB (black)


    Attach the horizontal plane


    L Type Stand



    KG-SL


    Attach the vertical plane


    Stand



    KG-45SP (Beige)
    KG-45SPB (Black)


    Applies when using the
    P type stand



    Cap



    KG-45SCR
    KG-45SCY
    KG-45SCG
    KG-45SCW



    Cap R, Y, G, B, W



    LED Lamp



    KG-SD2LR
    G, B, W&Y
    KG-SV2LR
    G, B, W&Y



    LED lamp R, G, B, W&Y
