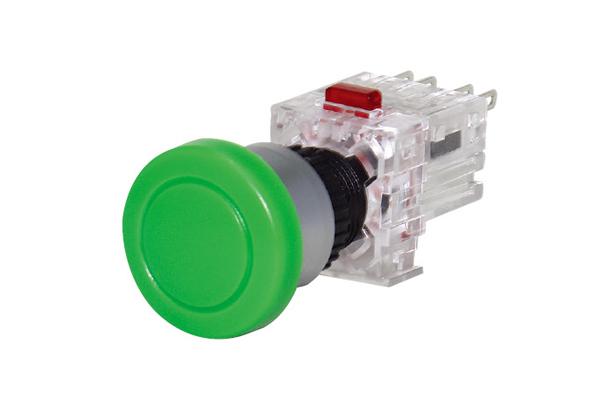

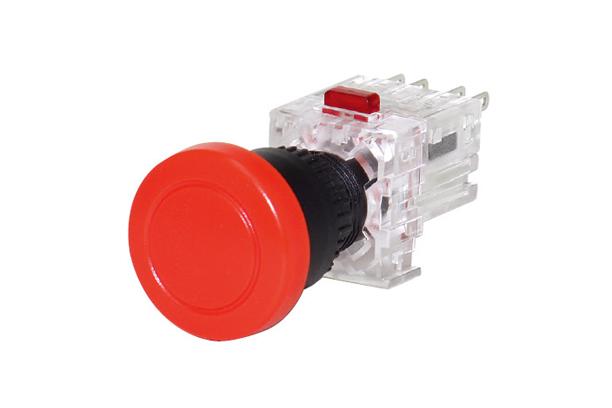

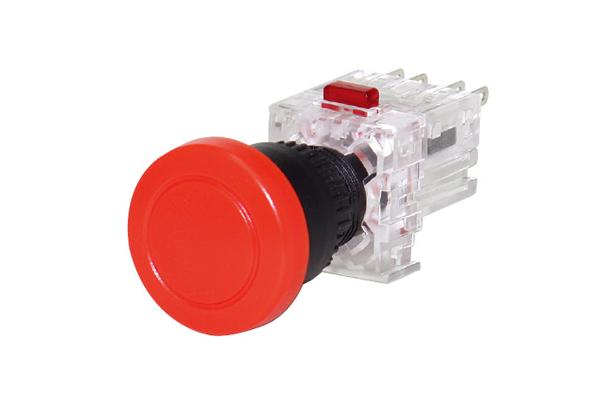

Features
1. Operating and contact part was planned in separation style
2. Attached hole ∅16, ∅22 The selection with is various it used
3. Slim type is being 2.5mm projections from panel. there is no jam from the side
4. Contact block was planned basic 1a1b
5. A light source was produced with the LED
6.
7. Protected structure : IP65
LED Lamp
| Rated Voltage | Rated Current |
| 12/24V d.c | 32mA |
| 110/20V a.c | 7.5mA |
Circuit diagrams
Performance
Name composition
∅16 Assembly order
| Panel cutting size
|
User guide
∅16 Round, square type
| ∅16 Rectangular type
|
∅22 Luxury buried type
| ∅16, 22 Contacts terminal
|
Attention
-Panel cutting is above by a necessity to select
- Panel thickness 1~7mm
- Lamp terminal and terminal wiring not to be exchange it will have attention
KD S/W Symbol Mark
Features
1. When presenting date, such as the symbol that you want in the form as it is marking this possible
2. Symbol mark is making a computer laser engraving machine, laser engraving is part of burning technique is more efficient than traditional printing methods and keep a long life
3. Symbol mark is applied to the switch is a FA equipment, CD equipment, laser equipment, etc. can be applied to a wide of industrial site.
적용 모델 : KD-S,F TYPE
Symbol mark
Symbol mark
KD-S TYPE
| KD-F TYPE
|
Parts
| Division | Form | Code | Explain |
| Contactor unit |
| KD-10 | Contact block was planned basic 1a1b and the maximum 4a4b until there is a possibility of attaching |
| Fixing plate |
| KD-F | Operating or contactor part attaching and remove is easy |
| Support block |
| KD-20 | Contactor part support block |
| ∅16 Aluminum guide |
| KD-16 | Operation part ∅16 aluminum guide |
| ∅22 Aluminum guide |
| KD-22 | Operation part ∅22 aluminum guide |
| Turn prevention ring |
| KD-28 | Operation part ∅16 turn prevention ring |
| Attaching tool |
| KD-40 | Use the attaching panel |
| Actuator Protect cover |
| KD-16G | ∅16 Actuator Protect cover |
| Actuator Protect cover |
| KD-22QG | Actuator protect cover |
