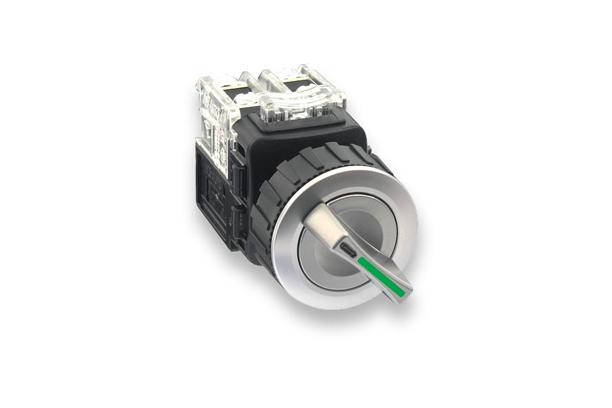

Lamp selector switch

Model

Series

KM Metal Series


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Features

1. Designed to separate into Actuator and Contact part.
2. Designed ∅22, ∅25 and ∅30 attaching hole for various selection.
3. The panel till be beautiful and simple caused by the Flush type switch.
4. The snap action contact block is designed as 1a1b basically.
5. A light source is designed for a LED
6.


LED Lamp

KM-J,L Type

Rated voltageRated voltage
12/24V d.c22mA
110/220V a.c

8nA 이하


KM-Q Type

Rated voltage
Rated voltage
12/24V d.c32mA
110/220V a.c7.5mA


Performance


Circuit diagrams


Name composition




Q : Round & Flush type ∅22



J : Round & Flush type ∅25


L : Round & Flush type ∅30








Panel cutting size
KM-Q Type


Wiring diagram
KM-Q Type


Panel cutting size
KM-J Type


∅22 Normal type attaching
KM-L Type




Part

DivisionFormCodeExplain
Contactor unit
KM-Q


KD-10The Contact block is designed as 1a1b basically and it is easy to assemble and disassemble.
Contactor Unit
KM-J, L


KG-10The contact block is designed as 1a1b basically and it is easy to assemble and disassemble.
- The rest of parts are the same as KD and KG series.


Attention

- Panel cutting sizes are shown above. Use it according to size.
- Panel thickness is 1~6mm
- Be careful not to change the wiring between Lamp terminal and switch terminal.
- Attaching nut torque is below 20kgf · cm
- Attaching bolt torque is below 5kgf · cm
- Use a M3.5 and ring washer for the terminal.
