  • Justek

    Model
    JSMD-02D/03D/04D
    Series
    Drivers/Amplifiers

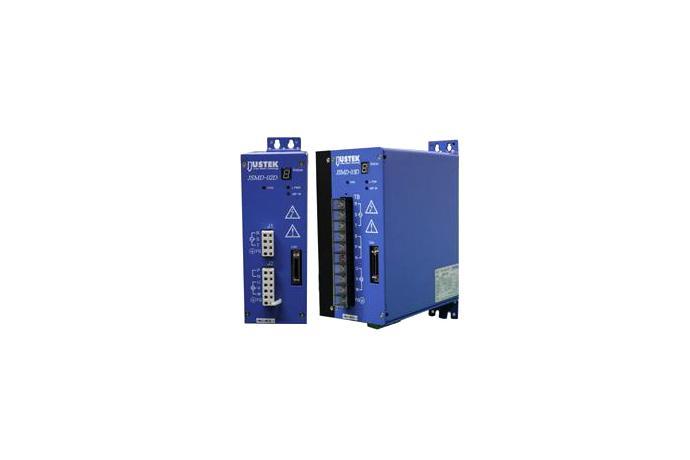

    Product Description

    Description

    - Direct PWM amplifier based on the interface with Delta-Tau UMA

    - Line up of 3 types by the current capacity
    - Wide range hardware protection displayed by 7-segment LED (VDC trip, Over-current trip, PWM command error, Dead time trip, IPM fault)
    * Maximum 30Arms/ 60Arms continuous/ peak current
    * PWM switching frequency : 15kHz
    * Handling of black outs by use of external capacitor bank (optional)


    Features

    Fully isolated electronic circuit

    Self-protection functions
    - Over & under voltage, over current, etc.



    Specification

    Model

    JSMD-02D

    JSMD-03D

    JSMD-04D

    Specifications

    Input Power Nominal Input Voltage(Vac)

    208

    Rated Input Voltage(Vac)

    180~230

    Input Frequency(Hz)

    50 / 60

    Phase Requirement

    1 or 3 phase

    3 phase

    Output Power Output Voltage(Vac)

    0~150

    Rated Continuous Output Current(Arms)

    7.5

    15

    30

    Peak Output Current(Arms)

    15

    30

    60

    Rated Output Power(kW)

    1.5

    3

    6

    Maximum PWM Frequency(kHz)

    15

    12

    12

    Minimum Dead Time(μs)

    3.5

    Bus Protection Nominal DC Bus Voltage(Vdc)

    290

    Over Voltage Trip Level(Vdc)

    410

    Under Voltage Lockout Level(Vdc)

    200

    Regeneration Turn-on Voltage(Vdc)

    370

    Regeneration Turn-off Voltage(Vdc)

    340

    Feedback Current Sensing Resolution(bits)

    12/14

    Range(Apeak)

    ±25

    ±50

    ±100

    Digital Encoder Interface

    N/A

    Analog Encoder Interface

    N/A

    I/O Interface Motion Interface

    Direct PWM interface with UMAC?(36-pin Mini-D)

    Environment Operation Temperature(℃)

    5 to 45

    Storage Temperature(℃)

    0 to 70

    Ambient Humidity(%)

    20 to 80 (without condensation or frost)

    Vibration(m/sec2)

    5

    * Note : Specifications are subject to change without further notice.
