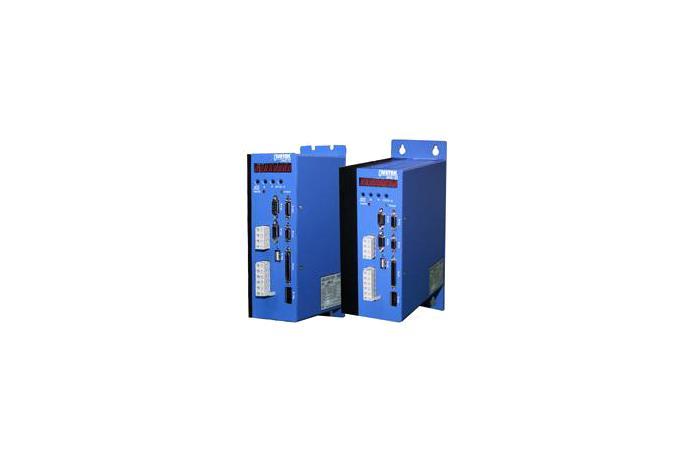

  • Justek

    Model
    JSMD-02/03
    Series
    Drivers/Amplifiers

    Product Description

    Description

    - DSP based full-digital servo drive optimized for linear motor

    - Precision motion control by the digital current control based on space voltage vector


    Features

    High performance servo driver
    - Current control type based on space vector modulation
    - High PWM resolution (13bit)
    - High frequency pulse train input (6MHz)
    - Control of micro current is possible via 14bit AD converter

    Compatible with diverse communication interfaces including SPI, USB, etc.

    General purpose I/O (input 9/ output 9) and programmable operation

    Dedicated UI software MCS for setup



    Specification

    Model

    JSMD-02

    JSMD-03

    Specifications

    Input Power

    Nominal Input Voltage(Vac)

    220

    Rated Input Voltage(Vac)

    200~230

    Input Frequency(Hz)

    50/60

    Phase Requirement

    1 or 3 phase

    3 phase

    Output Power

    Output Voltage(Vac)

    0~170

    Rated Continuous Output Current(Arms)

    5.3

    11

    Peak Output Current(Arms)

    16

    42

    Rated Output Power(kW)

    0.5

    1.5

    Maximum PWM Frequency(kHz)

    20

    13.3

    Minimum Dead Time(μs)

    3.5

    Bus Protection

    Nominal DC Bus Voltage(Vdc)

    310

    Over Voltage Trip Level(Vdc)

    410

    Under Voltage Lockout Level(Vdc)

    180

    Regeneration Turn-on Voltage(Vdc)

    380

    Regeneration Turn-off Voltage(Vdc)

    350

    Feedback

    Current Sensing

    Resolution(bits)

    14

    Range(Apeak)

    ±32

    ±63

    Digital Encoder Interface

    ABZ type quadrature encoder up to 8MHz (after ⅹ4)

    Analog Encoder Interface

    N/A

    I/O Interface

    Motion Interface

     1) Pulse/Dir or CW/CCW (Line drive type)

     2) Digital input position command (32 points)

     3) Analog current command DC -10V ~ +10V

    Hall/Limit Sensor Interface

    3M 14-pin (5V open collector type)

    Environment

    Operation Temperature(℃)

    5 to 45

    Storage Temperature(℃)

    0 to 70

    Ambient Humidity(%)

    20 to 80 (without condensation or frost)

    Vibration(m/sec2)

    5

    * Note : Specifications are subject to change without further notice.
