JOKWANG ILI

JOKWANG ILI

Pressure Reducing Valve

Model

Series

Pressure Reducing Valve


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

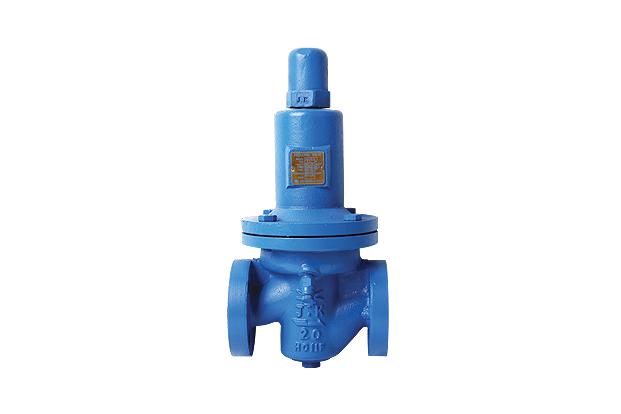

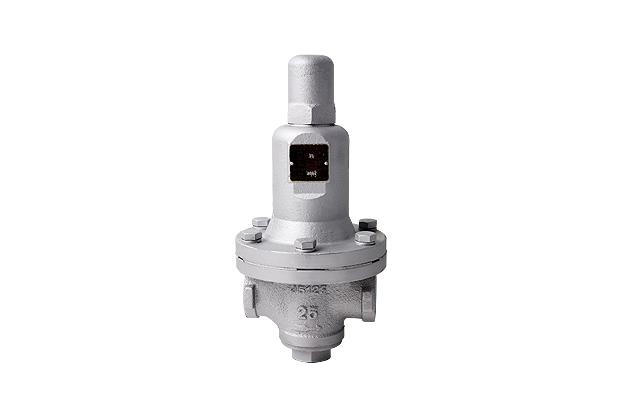

JRV-SF14/SF24D (Direct Acting Type)

This is a direct impingement type pressure relief valve. The small size makes it easy to handle, and the simple structure increases durability. It is particularly excellent when used for the water supply pressure control on each floor, from the water tank in high-rise buildings. Adjustment pressure is easy and safe. Interior inspection can be done with a simple disassembly of the upper part, making it easy to maintain.



Product specification

MODEL FORMAT APPLICABLE
LIQUIDS
CORRECT
TEMPERATURE
TO BE
APPLIED °C
CORRECT PRESSURE
TO BE APPLIED MPA (KGF/CM²)
MAXIMUM
PRESSURE
REDUCTION
RATE
MINIMUM
DIFFERENCE
IN PRESSURE
MPA
(KGF/CM²)
HOW TO
CONNECT
THE PRODUCT
MATERIAL
PRIMARY SIDE SECONDARY
SIDE
MAIN BODY KEY PART
JRV-SF14 Direct impingement type
(piston)
Gas
Liquid
-20~80 Lower than 1.0 (10.0) 005~04,
04~07
(0.5~4,4.0~7.0)
10:1 0.05(0.5) JIS B 223910KRF Flanged Gray
Cast Iron
Bronze,
Synthetic
Rubber
JRV-SF24D Lower than 2.0 (20.0) JIS B 222010K,20K RF
Flanged
Cast Steel,
Stainless Steel
Stainless
Steel,
Synthetic
Rubber
