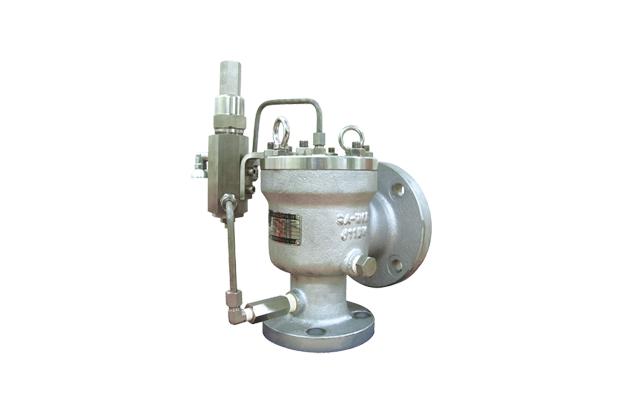

JSV-PF100 (Pilot Operated Type)
It is used in various pressurized containers and gauging devices of oil & gas plants and petrochemical plants, and in particular as a substitute where spring load types cannot be installed.
This product has acquired a capacity and quality certification from ASME ("UV" Stamp). It can be used in places where the bellows type cannot be used due to the excessive pressure, or where a large capacity valve is needed but there is not enough space. If can be used where the process requires a detection of pressure in one place while another place requires the outlet of liquids. It is also appropriate for cases where remote control is needed. For leakage, the API STD 527 standard applies.
Product specification
| FORMAT | CERTIFICATION | SIZE | OFRICE AREA |
ORIFICE DIAMETER |
CORRECT PRESSURE TO BE APPLIED |
HOW TO CONNECT THE ITEM |
CORRECT TEMPE RATURE TO BE APPLIED |
CRITERION FOR LEAKAGE |
|---|---|---|---|---|---|---|---|---|
| Pliot Operation Full Bore Type |
UV Stemp | 1" x 2" ~ 20" x 24" |
D(96.77㎡)~B2(146451.3㎡) / D(0.15in²) ~ B2(227in²) |
D(11.1mm)~B2(431.8mm) / D(0.437in) ~ B2(17.0in) |
0.1~68.94MPa (1.05~706.06kgf/cm²) |
Flanged | -196~260°C (325°C) |
API Standard 527 |
Product Certification
This product has been designed, labeled and manufactured according to the rules of certification as marked below.
