Outline

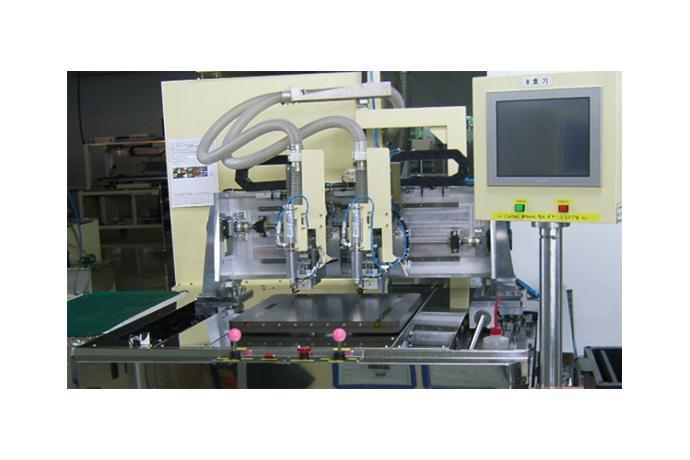

Diamond Wheel is incorporated for uniformed width and depth Scribing on the Glass surface. This enables versatile model production within X, Y stage Stroke range. The equipment also allows for Manual Loading/Unloading & Breaking and may be provided as Optimized equipment in consideration of user serviceability.

Core Technology

Main

- High Speed [2 Head]
- Uniformed Scribing [Depth & Width]
- One Touch Model Change
- Scribing Particle eradication
- Cool Fan mounted for minimal Stress on the Glass Edge

Tool

- Height deviation compensated through Real Time during Scribing
. Glass raw material thickness compensation
. Stage flatness deviation compensation
. Stage and Scribing Tool Parallelism compensation
- Maintains even pressure on the Tool
- Tool lifecycle optimization

Specification

X,Y 2 Axis Linear Stage

600*700

1

Turn Stage & Vacuum Line

0 & 90 Degree

1

Diamond Wheel

2 Head

1

Wheel Height Control Unit

Real Time

2

Cooling Unit

Bosh Rexroth tube

2

Dust & Particle Collector

Collector

1

Electronic Control

PLC & Touch

1

X,Y 2 Axis Linear Stage

600*700

1

Turn Stage & Vacuum Line

0 & 90 Degree

1

Scribing Speed

120mm/Sec
