Product Name
Tractor Attached Type Seeder
Model Name
JDT4, JDTU
Size
-
Weight
-
Product Details
Features of plate type seeder
- Hopper volume: 7.5ℓ
- Extraction with tilting core plate
- Burying foreign substances with a disk harrow attached
- Adjustable 11 levels of sowing distance
- Seed: large seeds such as beans, corns, adlay, etc.
- Dual structured hopper prevents missing plants
- One-touch operation
JDT-4/ JDT-U
Specification
| Model name | JDT-4 / JDT-U | Inter row spacing(cm) | Minimum 20㎝ |
|---|---|---|---|
| Type | Tractor attached type | Intra row spacing(cm) | 6~37 |
| Dimension(mm)(L*W*H) | 850*230*610 (1 seed) | Depth control(cm) | Hitch |
| Weight(kg) | 15kg(1 seed) | Number of seed | 3 seeds |
| Work efficiency | 6 seeds (inter row spacing 40㎝): 6,000㎡(60a, 1,815 pyong)/1ｈ≪ 2.5㎞ / 1ｈ | ||
Product information

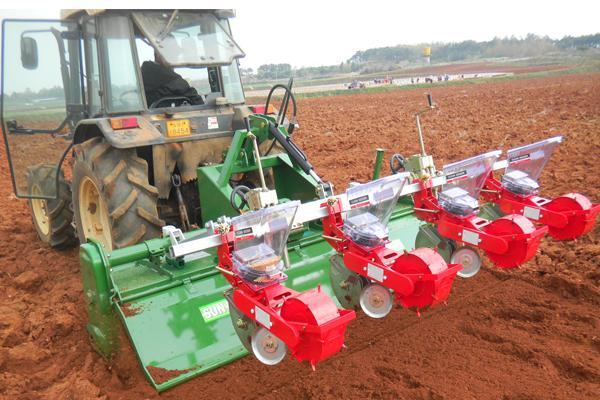

- Attached on the back of a tractor or a rotavator
- Each seeding unit has a dual link structure that moves up and down and performs individually.
- Minimum inter row spacing: 20㎝
- Sideband placement instrument (JDTF) is available.
